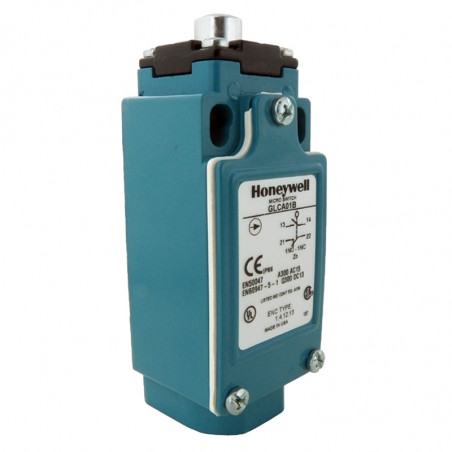

GLC - commutateur en boîtier métallique
  • GLC - commutateur en boîtier métallique

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Honeywell

GLC - commutateur en boîtier métallique

Technical data

Mechanical life: up to 15 million operations
Degree of protection: IP66
Temperature range: -25...85°C
Storage: -40...85°C
Approvals: IEC 60947-5-1
  EN 60947-5-1
  AC15 A300
  DC13 Q300
  UL & CSA
Vibration 10g conforming to IEC 68-2-6
Shock 50g conforming to IEC 68-2-27
Terminal marking to EN 50013

Dimensions [mm/in]
GLC - WYŁĄCZNIK WG NORMY EN50047 W METALOWEJ OBUDOWIE

  Fast contact
1NZ/1NO
Low contact
Disconnect before turning on
1NZ /1NO
Lever type
O.F. - Operating Force
R.F. - Release Force
R.T. - Pretravel
O.T. - Overtravel
D.T. - Differential travel
O.P. - Operating Position
F.P. - Free Position

Side lever
with metal roll


Pusher

Pusher with roll
* - According to IEC/EN60947-5-1-3
Upper lever with roll


Spring bar





  Low contact
Rozłącz przed
rozłączeniem
1NZ/1NO
Low contact
2NZ
Lever type
O.F. - Operating Force
R.F. - Release Force
R.T. - Pretravel
O.T. - Overtravel
D.T. - Differential travel
O.P. - Operating Position
F.P. - Free Position

Side lever
with metal roll


Pusher

Pusher with roll
* - According to IEC/EN60947-5-1-3
Upper lever with roll


Spring bar
