SPIRAL EMC Joints
  • SPIRAL EMC Joints

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: FEUERHERDT

SPIRAL EMC Joints

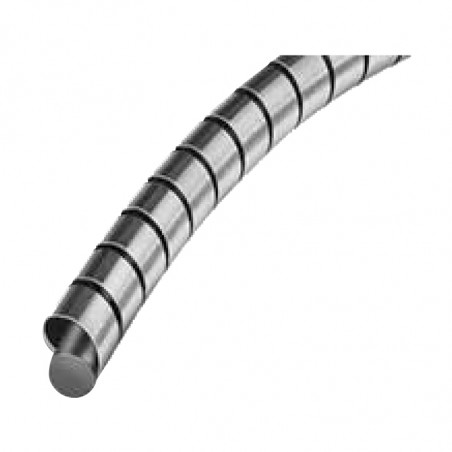

Spiral Shield Gaskets

In order to compress the „Spira Shield“ gaskets by 25% of their diameter the following forces are required:

  • Standard Force: 30 pounds per linear inch of the gasket
  • Moderate Force: 10 pounds per linear inch of the gasket
  • Low Force: 2 pounds per linear inch of the gasket.

Spira Strip (Military Grade)

Spiral gasket with tin-plated beryllium copper and elastomer seal
Spira Strip is a Spira shield gasket to which a strip of solid or foamed elastomer has been attached. The elastomer is provided with adhesive tape to keep the spiral in the required position. Solid elastomers also serve as a mechanical stop to protect the spiral gasket from excessive compression as well as acting as a seal.
Foamed elastomers are preferred as environmental seals against rain, wind and dust.
Solid silicones have a Shore hardness of approx. 40°. They can be supplied as fluorosilicone if the „S“ from the order number is replaced by an „F“ (e. g. SS-0622/F).
Moderate Force und Low Force spirals have a solid elastomer core of approx. 80 Shore and a diameter some 75% of that of the spiral.
The Moderate Force spiral can also be ordered without the elastomer core by adding „NC“ to the order number (e.g. MS-0834 NC/S).
Foamed silicones are supplied with Shore hardness of 15°-25°. They can also be replaced by a neoprene foam if the „C“ is replaced by „A/P“ (e.g. MS-0623-A/P).


Elastomer- Standard

 P/N
Solid silicone Foamed silicone
A
[mm]		 B
[mm]		 Ø D
[mm]		 Standard
Force		 Moderate
Force		 Low
Force		 Ø D
[mm]		 Standard
Force		 Moderate
Force		 Low
Force
1.6 6.4 2.4

IWSS-0622/S

IWMS-0622/S

IWLS-0622/S

 1.6

IWSS-0422/C

IWMS-0422/C

IWLS-0422/C
1.6 3.5 2.4

IWSS-0623/S

IWMS-0623/S

IWLS-0623/S

 1.6

IWSS-0423/C

IWMS-0423/C

IWLS-0423/C
1.6 12.7 2.4

IWSS-0624/S

IWMS-0624/S

IWLS-0624/S

 1.6

IWSS-0424/C

IWMS-0424/C

IWLS-0424/C
1.6 15.9 2.4

IWSS-0625/S

IWMS-0625/S

IWLS-0625/S

 1.6

IWSS-0425/C

IWMS-0425/C

IWLS-0425/C
2.4 6.4 3.2

IWSS-0832/S

IWMS-0832/S

IWLS-0832/S

 2.4

IWSS-0632/C

IWMS-0632/C

IWLS-0632/C
2.4 9.5 3.2

IWSS-0833/S

IWMS-0833/S

IWLS-0833/S

 2.4

IWSS-0633/C

IWMS-0633/C

IWLS-0633/C
2.4 12.7 3.2

IWSS-0834/S

IWMS-0834/S

IWLS-0834/S

 2.4

IWSS-0634/C

IWMS-0634/C

IWLS-0634/C
2.4 15.9 3.2

IWSS-0835/S

IWMS-0835/S

IWLS-0835/S

 2.4

IWSS-0635/C

IWMS-0635/C

IWLS-0635/C
3.2 6.4 4.4

IWSS-1142/S

IWMS-1142/S

IWLS-1142/S

 3.2

IWSS-0842/C

IWMS-0842/C

IWLS-0842/C
3.2 9.5 4.4

IWSS-1143/S

IWMS-1143/S

IWLS-1143/S

 3.2

IWSS-0843/C

IWMS-0843/C

IWLS-0843/C
3.2 12.7 4.4

IWSS-1144/S

IWMS-1144/S

IWLS-1144/S

 3.2

IWSS-0844/C

IWMS-0844/C

IWLS-0844/C
3.2 15.9 4.4

IWSS-1145/S

IWMS-1145/S

IWLS-1145/S

 3.2

IWSS-0845/C

IWMS-0845/C

IWLS-0845/C

Spiralne uszczelki EMC

Spira Strip (Commercial Grade)

Uszczelka spiralna (wersja komercyjna)

Spiral shield gaskets of stainless steel with foamed neo-prene as hold/seal. All three resiliencies are delivered without silicone core.

Compression forces:
The following approximate forces are required to compress the „Spira Strip“ by 25% of their diameters:

  • Standard Force: 34 pounds per linear inch of the gasket
  • Moderate Force: 14 pounds per linear inch of the gasket
  • Low Force: 4 pounds per linear inch of the gasket



Spiralne uszczelki EMC
A
[mm]		 B
[mm]		 Ø D
[mm]		 Part no.
Standard
Force		 Moderate
Force		 Low
Force
1.6 6.4 1.6

NI-0422-A /P

NM-0422-A NC /P

NL-0422-A NC /P
1.6 9.5 1.6

NI-0423-A /P

NM-0423-A NC /P

NL-0423-A NC /P
2.4 6.4 2.4

NI-0632-A /P

NM-0632-A NC /P

NL-0632-A NC /P
2.4 9.5 2.4

NI-0633-A /P

NM-0633-A NC /P

NL-0633-A NC /P
3.2 6.4 3.2

NI-0842-A /P

NM-0842-A NC /P

NL-0842-A NC /P
3.2 9.5 3.2

NI-0843-A /P

NM-0843-A NC /P

NL-0843-A NC /P


Basic Spira Multi-Seal


Wersja podstawowa spira MULTI-SEAL

These spiral seals have a specially formed elastomer seal for use with very uneven sealing surfaces. Their design allows the elastomer seal to act both as pressure stop to
protect the spiral shield gasket and also as a seal against dust and moisture.

Compression forces:

  • Standard Force: 34 pounds per linear inch of the gasket
  • Moderate Force: 14 pounds per linear inch of the gasket

Dimensions of seals Part no.
tin-plated beryllium cooper Stainless steel
A
[mm]		 B
[mm]		 C
[mm]		 D
[mm]		 Standard
Force		 Moderate
Force		 Standard
Force		 Moderate
Force
1.6 9.5 3.2 2.4

CSS-0623

CMS-0623

CNI-0623

CNM-0623
2.4 9.5 4.8 3.2

CSS-0833

CMS-0833

CNI-0833

CNM-0833
2.4 12.7 4.8 3.2

CSS-0834

CMS-0834

CNI-0834

CNM-0834
2.4 15.9 4.8 3.2

CSS-0835

CMS-0835

CNI-0835

CNM-0835
