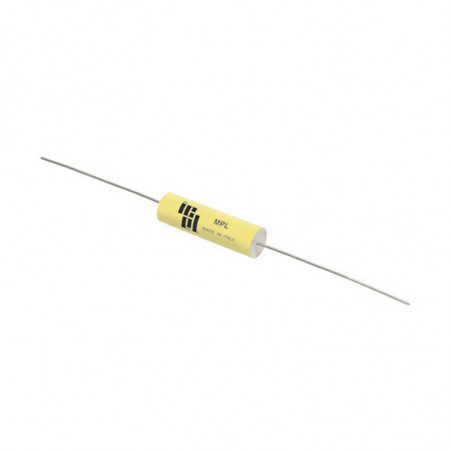

MPL - condensateurs en polypropylène
  • MPL - condensateurs en polypropylène

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Icel

MPL - condensateurs en polypropylène

Main Application

  • Filtering, timing, integrating circuits
  • High performance and high precision circuits
  • Low pulse operation


Execution and reference standard

  • Extended metallized film
  • Axial terminals
  • Low tolerance execution on Capacitance up to ±1%
  • UL 94 V-0, flame retardant execution
  • IEC 60384/13, IEC 60068, RoHS


MPL Ur Cn (μF) du/dt (V/μs) Nom. size D (mm) x L (mm)
160 Vdc (90 Vac) 0.0562 ÷ 4.7 12.5 ÷ 44 5x13 ÷ 16x32
250 Vdc (200 Vac) 0.0182 ÷ 3.3 15 ÷ 55 5x13 ÷20x32
400 Vdc (220 Vac) 0.00825 ÷ 1.5 29 ÷ 110 5x13 ÷ 18x32
630 Vdc (250 Vac) 0.00475 ÷ 1 46 ÷ 190 5x13 ÷ 19x32

Product card - Download
