Pilote Plug & Play - Génération 1
  • Pilote Plug & Play - Génération 1

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Concept

Pilote Plug & Play - Génération 1

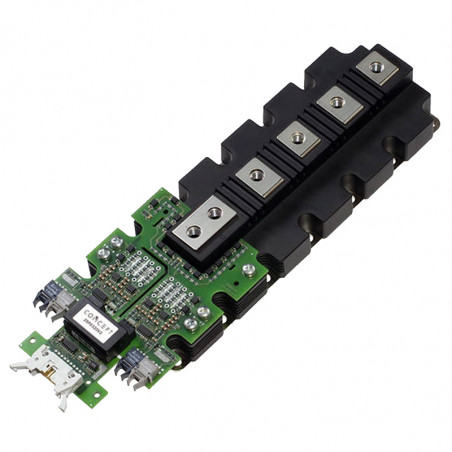

Plug[&]Play drivers, generation SCALE-1 are dedicated for specific transistors. They fits electrically and mechanically.

1SD312F2

2SB315B

6SD312EI


Driver
type
Channel
number
IOUT
[A/kanał]
UB
[V]
POUT
[W/kanał]
Topology* IGBT manufacturer

1SD312F2

1 12 4500 Optyczny 2+M Mitsubishi, Powerex, Infineon, Fuji, ABB

1SD418F2

1 18 1700/2500/3300 Optyczny 2+M Mitsubishi, Powerex, Infineon, Fuji, ABB

1SD536F2-17

1 36 1200/1700 Optyczny 2+M Mitsubishi, Powerex, Infineon, Fuji, ABB

1SD536F2-33

1 36 2500/3300 Optyczny 2+M Mitsubishi, Powerex, Infineon, Fuji, ABB

1SD536F2-5SNA1500E330305

1 36 2500/3300 Optyczny 2+M Mitsubishi, Powerex, Infineon, Fuji, ABB

2SB315A

2 15 1200/1700 DIC20 2 Mitsubishi, Powerex, Infineon, Fuji, ABB

2SB315B

2 15 1200/1700 Optyczny 2 Mitsubishi, Powerex, Infineon, Fuji, ABB

2D316EI-12
Wymagany ED01

2 16 1200 DIC20 2 Mitsubishi, Infineon, Fuji, Danfoss

2D316EI-17
Wymagany ED01

2 16 1700 DIC20 2 Mitsubishi, Infineon, Fuji, Danfoss

6SD312EI
Wymagany EB01

6 12 1200/1700 DIC40 2 Mitsubishi ,Fuji, Infineon

DB01

2 16 1200/1700 - - Mitsubishi, Infineon, Fuji, Danfoss

EB01

6 12 1200/1700 - - Mitsubishi ,Fuji, Infineon

*Topology description, 2 – 2 level converters, M – multi-level converters, MO – optional multilevel configuration, P – parallel configuration
