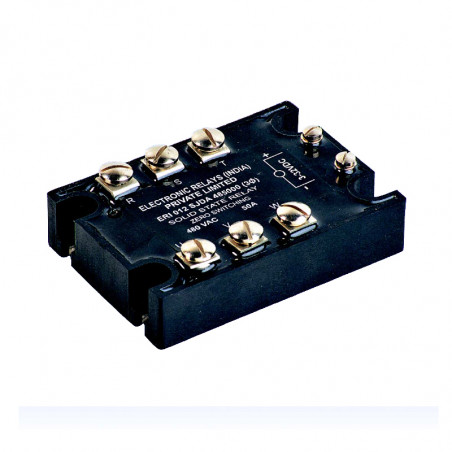

Relais triphasé
  • Relais triphasé

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: ERI

Relais triphasé

Three phase relays

Technical data:
• Isolation Voltage 2500VRMS
• Isolation Voltage 47-63Hz
• Operating Temperature -30 +80C

Symbol Input Data Output Data I2t [A2s] Thermal resistance connector / Casing
[°C/W]
Control voltage
[V]
Input current
[mA]
Load current
 ARMS
Voltage range
VRMS
Voltage
 Vpeak
Current repetitive
 Apeak

012SJDA485000

4-32VDC 8-80mA 50 50-480 800-1200 500 1250 0,7

012SJDA487500

4-32VDC 8-80mA 75 50-480 800-1200 1150 5000 0,6

012SJDA489000

4-32VDC 8-80mA 90 50-480 800-1200 1150 5000 0,3

Schemat

Wymiary [mm]

Characteristic
