Série ABC et AGC - un moyen rapide à l'action
  • Série ABC et AGC - un moyen rapide à l'action

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: EATON Bussmann

Série ABC et AGC - un moyen rapide à l'action

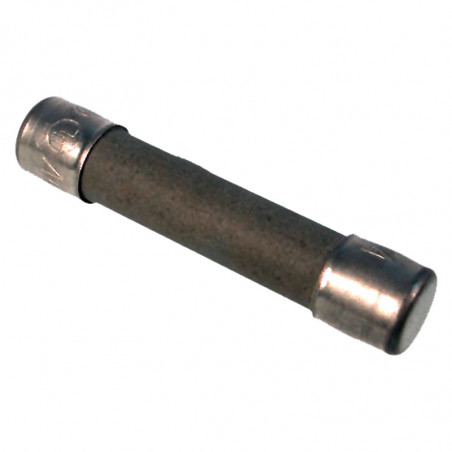

ABC (CERAMIC)
ABC-V (ceramic coaxial)
example marking: ABC10


AGC (glass)
AGC-V (glass coaxial)
example marking: AGC10


Table. Electrical data


Dimensions IN

[A]
UN

[V
Maximal current
[A]
Quantity in cardboard
pcs.
Cardboard weight
[kg]
AC DC AC DC
6,3 x 32 mm
1/4” x 1 1/4
0,25 250 250 35 35 10 0,03
0,5 250 250 35 35 10 0,03
0,75 250 250 35 35 10 0,03
1 250 250 35 35 10 0,03
1,5 250 - 100 - 10 0,03
2 250 - 100 - 10 0,03
2,5 250 - 100 - 10 0,03
3 250 - 100 - 10 0,03
4 250 250 200 200 10 0,03
5 250 250 200 200 10 0,03
6 250 - 200 - 10 0,03
7 250 - 200 - 10 0,03
8 250 - 200 - 10 0,03
10 250 250 200 200 10 0,03
15 250 250 750 750 10 0,03
20 250 - 400 - 10 0,03
25 125 - 1000 - 10 0,03
30 125 - 1000 - 10 0,03
6,3 x 32 mm
1/4 x 1 1/4
0,05 250 250 35 35 10 0,03
0,0625 250 250 35 35 10 0,03
0,1 250 250 35 35 10 0,03
0,125 250 250 35 35 10 0,03
0,1875 250 250 35 35 10 0,03
0,2 250 250 35 35 10 0,03
0,25 250 250 35 35 10 0,03
0,3 250 250 35 35 10 0,03
0,375 250 250 35 35 10 0,03
0,45 250 250 35 35 10 0,03
0,5 250 250 35 35 10 0,03
0,75 250 250 35 35 10 0,03
1 250 250 35 35 10 0,03
1,25 250 250 100 100 10 0,03
1,5 250 250 100 100 10 0,03
2 250 250 100 100 10 0,03
2,25 250 250 100 100 10 0,03
2,5 250 250 100 100 10 0,03
3 250 250 100 100 10 0,03
4 250 250 200 200 10 0,03
5 250 250 200 200 10 0,03
6 250 250 200 200 10 0,03
7 250 250 200 200 10 0,03
8 250 250 200 200 10 0,03
9 250 250 200 200 10 0,03
10 250 250 200 200 10 0,03
15 32 - 1000 - 10 0,03
20 32 - 1000 - 10 0,03
25 32 - 1000 - 10 0,03
30 32 - 1000 1000 10 0,03
