Fabricant: SALTEK

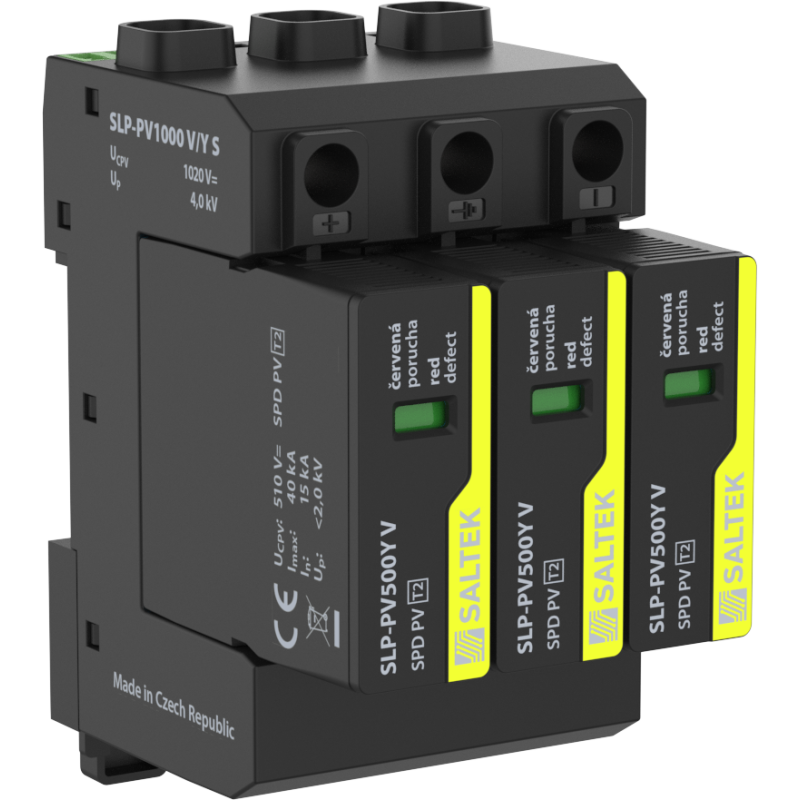

SLP-PV1000 V/Y S - Parafoudre (SPD)

  • SLP-PV1000 V/Y S
  • Indice de protection IP 20
  • Type de SPD PV T2
  • Indication à distance potential-free change-over contact
Parameter name Parameter value
Type of SPD PV T2
Mounting DIN rail 35 mm
Maximum operating voltage mode +/PE, -/PE UCPV 1 020.00 V DC
Short-circuit current rating ISCPV 10 000 A DC
Residual current mode +/PE, -/PE IPE 0.250 mA AC
Residual current mode +/PE, -/PE IPE 0.005 mA DC
Total discharge current (8/20 µs) ITotal(8/20) 40.00 kA
Nominal discharge current (8/20 µs) In 15.00 kA
Maximum discharge current (8/20 µs) Imax 40.00 kA
Voltage protection level mode +/- Up 4.00 kV
Voltage protection level mode +/PE, -/PE Up 4.00 kV
Response time ta 25 ns
Cross-section of connected conductors solid (min) 1.00 mm2
Cross-section of connected conductors solid (max) 35.00 mm2
Cross-section of connected conductors stranded (min) 1.00 mm2
Cross-section of connected conductors stranded (max) 25.00 mm2
Cross-section of remote indication conductors solid (max) 1.5 mm2
Cross-section of remote indication conductors stranded (max) 1.5 mm2
Fault indication red indication field
Remote indication potential-free change-over contact
Remote indication contacts 250V/0,5A AC,250V/0,1A DC
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
According to standard EN 61643-31, IEC 61643-31
ETIM Class EC000941
Customs tariff number 85363030
EAN 8595090543039
