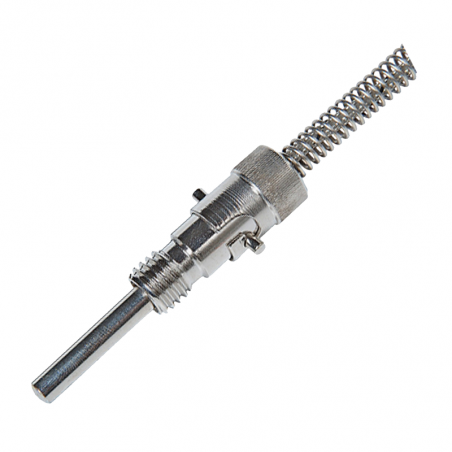

Thermocouple simple (J, K, N) - TC-07

Straight thermocouple is designed for precise high temperature(-40°C - +1100°C) measurement.
They are most often used for gas, liquid and technological processes devices temperature measurement.
It is possible to make thermocouple with stube pipe or assembly collar.

Specification

Model Execution Insert type Length L
U With none changeable insert Not changeable arbitrary
PS With changeable insert WP-TE-02
PS/Exi Spark safe with changeable insert

Thermocouple electrical data
Coat insert Measurement range - Class 1
1xFe-CuNi (J), 2xFe-CuNi (J)
1xNiCr-NiAI (K), 2xNiCr-NiAI (K)
1xNiOSi-NiSiMg(N), 2xNiCrSi-NiSiMg (N)		 Ø3 -40°C.+500°C
-40°C.+700°C 0°C..+1100°C (- 270°C..+1300°C**)
1xFe-CuNi (J), 2xFe-CuNi (J)
1xNiCr-NiAI (K), 2xNiCr-NiAi (K)
1xNiCrSi-MSiMg(N), 2xNiCrSi-NiSiMg (N)		 Ø6 -40°C..+600°C -40°C.+800(+1100*)°C
0°C +1100°C (- 270°C ..+1300°C**)
Characteristic
according to PN-EN 60584-1
Protection pipe
Diameter d Max operation temperature Material according to Nr / DIN Material according to aSTM/ AISi
Ø6,Ø8,Ø9,Ø10
,Ø11,Ø12,Ø15		 +700°C 1.4571 316 Ti
Ø10 +1100°C 1.4841 314
Ø10,Ø11,Ø15 +550°C 1.7335 A182 Grade Fil
Ø13.7 +600°C Hastelłoy C22 A576 Grade 1020
Weld type
insulated
grounded

Connection head
Type Operation max temperature Material
B +100°C Al
NA (z uszczelką silikonową) +150°C Al
Measurement transducer
according to order

Threaded clamping grip uZG-47
according to order

Uwaga
Istnieje możliwość wykonania odmian nietypowych.


Marking

A. Execution
 A

With none changeable insert
 U

With changeable insert
 PS

Spark safe with changeable insert
 PS/EXJ
B. Thermo element type
 B

1xFe-CuNi
 1xJ

2xFe-CuNi
 2xJ

1xNCr-NA
 1xK

2xNiCr-NiAl
 2xK

1xNiCrSi-NiSiMg
 1xN

2xNiCrSi-NiSiMg
 2xN
C. Protection shield d
 C

Ø6 mm
 6

Ø8 mm
 8

Ø9 rnm
 9

Ø10 mm
 10

Ø11 mm
 11

Ø12 mm
 12

Ø13,7 mm
 13,7

Ø15 mm
 15
D. Shield length
 D

L
 give in mm
E. Shield material
 E

1.4571
 1.4571

14841
 1.4841

1.7335
 1.7335

Hastelloy C22
 C22
F. Head
 F

NA (at operation temperature up to + 100°C)
 N1

MA (at operation temperature up to + 150°C)
 N2

B
 B
G. Weld type
 G

Izolowana
 O

Uziemiona
 Z
H. Operation temperature
 H

T
 give in °C
I. Measurement transducer
 I
    give type and range in °C

Uwaga
Istnieje możliwość wykonania odmian nietypowych.
