Vanne de démarrage douce et de décompression
Vanne de démarrage douce et de décompression

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: AirTAC

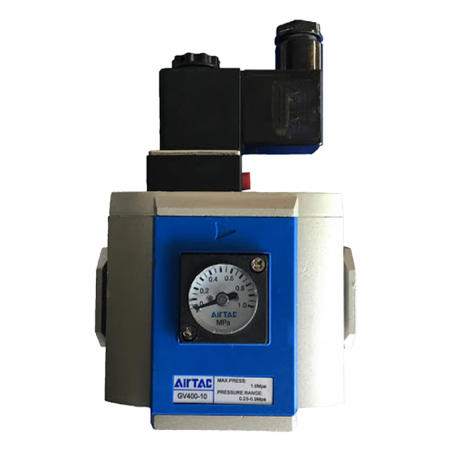

Vanne de démarrage douce et de décompression

GV Series
- Used with FRL, allows for soft start of pneumatic system.
- During the start there is a small air flow. The output air is 50% of input air. After some time the valve opens completely.
- During the closing cycle, the air is removed from the valve immediately.

GZ series
- Used with FRL, allows for soft start of pneumatic system.
- Output terminal can be connected to the noise filter.
- Closing mechanism: during maintenance valve should be blocked in position, which allows for remaining pressure reduction.
- Hand wheel should be removed in order to reduce remaining pressure.


Series GV GZ
Medium Air
Type Soft start Zawór dekompresyjny
Terminal 1/8"  1/4"  3/8"  1/2"
Control Control with coil Sterowany ręcznie
Temperature  -20 - +70°C
Operation pressure 2.5~9.0bar (0.25~0.9MPa) (5~130psi) 0~9.0bar (0~0.9MPa) (0~130psi)
Max pressure 15.0bar (1.5MPa) (215psi)


Moins
Lire la suite

Envoyez une demande

Êtes-vous intéressé par ce produit? Avez-vous besoin d'informations supplémentaires ou d'une tarification individuelle?

Nous contacter
DEMANDEZ LE PRODUIT close
Merci d'avoir envoyé votre message. Nous vous répondrons dans les plus brefs délais.
DEMANDEZ LE PRODUIT close
Feuilleter
envoyer une demande

Ajouter à la liste de souhaits

Vous devez être connecté

GV Series
- Used with FRL, allows for soft start of pneumatic system.
- During the start there is a small air flow. The output air is 50% of input air. After some time the valve opens completely.
- During the closing cycle, the air is removed from the valve immediately.

GZ series
- Used with FRL, allows for soft start of pneumatic system.
- Output terminal can be connected to the noise filter.
- Closing mechanism: during maintenance valve should be blocked in position, which allows for remaining pressure reduction.
- Hand wheel should be removed in order to reduce remaining pressure.


Series GV GZ
Medium Air
Type Soft start Zawór dekompresyjny
Terminal 1/8"  1/4"  3/8"  1/2"
Control Control with coil Sterowany ręcznie
Temperature  -20 - +70°C
Operation pressure 2.5~9.0bar (0.25~0.9MPa) (5~130psi) 0~9.0bar (0~0.9MPa) (0~130psi)
Max pressure 15.0bar (1.5MPa) (215psi)
