Pistes d'assemblage et accessoires
  • Pistes d'assemblage et accessoires

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: FEUERHERDT

Pistes d'assemblage et accessoires

Mounting Tracks and Accessories

Tory montażowe oraz akcesoria

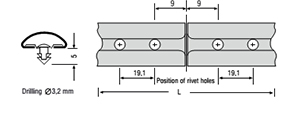

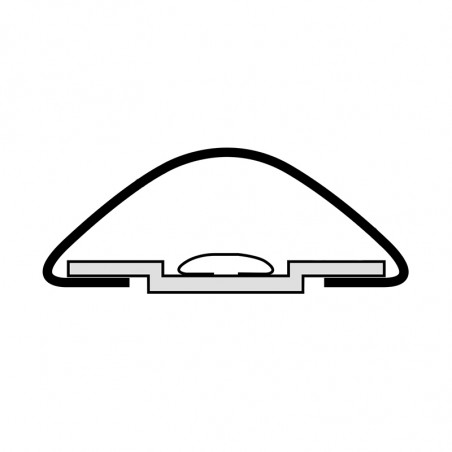

Instead of slots in the housing, a mounting track can be used for the shields with a T-end-piece.




Tory montażowe oraz akcesoria - MS 2 dla GK 5 - 6
Mounting track Partno.
MS 2 for GK 5 - 6 9730
Material: Stainless steel



Tory montażowe oraz akcesoria MS3 dla GJ 9
Mounting track Partno.
MS 3 for GK 9 9735
Material: Stainless steel



Tory montażowe oraz akcesoria MS 4 dla GK 13 - 18
Mounting track Partno.
MS 4 for GK 13 - 18 9740
Material: Brass



Tory montażowe oraz akcesoria MS 5 dla GK 21 - 22
Mounting track Partno.
MS 5 for GK 21 - 22 9745
Material: Brass

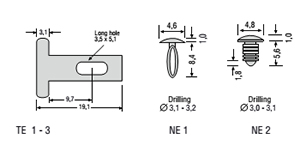

Tory montażowe oraz akcesoria TE 1 dla GK 9, TE 2 dla GK 13 - 18, TE 3 dla GK 21 - 22, N E 1 dla arkusza 0,5 - 1,5m, N E 2 dla arkusza 1,1 - 1,9
T - końcówka Partno.
TE 1 for GK 9 9750
TE 2 for GK 13 - 18 9751
TE 3 for GK 21 - 22 9752
Nity plastikowe
N E 1 for arkusza 0.5 - 1.5 mm 9754
N E 2 for arkusza 1.1 - 1.9 mm 9755



Rounded Shields

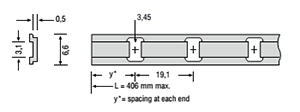

Tory montażowe oraz akcesoria J4, J5, J6
Form (Kształt) a
[mm]
b
[mm]
H
[mm]
B
[mm]
S
[mm]
L
[mm]
Partno.
J4 3.56 1.22 2.3 23.4 0.13 406 9063*
J5 3.56 1.22 2.3 23.4 0.13 406 9064*
J6 3.56 1.22 2.3 23.4 0.13 406 9065*
* only available in CuBe

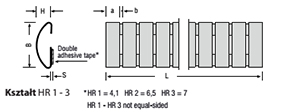

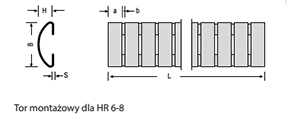

Tory montażowe oraz akcesoria HR6, HR7, HR8
Form (Kształt) B
[mm]
H
[mm]
No. of rivets Partno.
HR 6 9.1 2.8 10 9763
HR 7 11.4 3.6 10 9764*
HR 8 15.8 5.6 10 9765*
* only available in CuBe

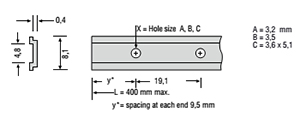

Tory montażowe oraz akcesoria MS6, MS7, MS8
Form (Kształt) A
[mm]
L
[mm]
Partno.
MS 6 8.1 400 9763
MS 7 11.0 381 9764
MS 8 15.2 381 9765
Material: Brass or stainless steel

Examples of typical application

Tory montażowe oraz akcesoria - przyklad zastoswoania
