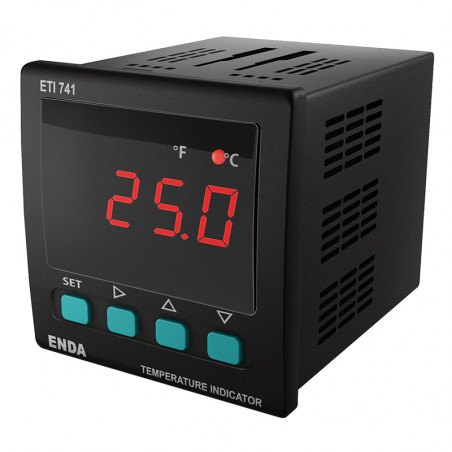

Affichage de la température ETI741
  • Affichage de la température ETI741

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Sisel

Affichage de la température ETI741

Technical data
Dimensions:
72x72 mm.
Display:
4 digits.
Easy to operate.
Selectable sensor type.
Unit selection:
°C, °F.
Supply:
230V AC lub9...30VDC/7...24VAC, 24AC ±10%
Power consumption:
Max 7VA
Data retention:
EEPROM (minimum 10 years)
Assembly:
Panel
Dimensions:
72x72x97mm
Ambient/storage temperature
0..50°C/-25..70°C
Rated pollution degree
According to EN 60529 Front panel : IP65
Rear panel : IP20


Sensor type Temperature range [°C] Accuracy
Thermocouple J (Fe-CuNi) 0..600 ± 0,2% ±1 digit
Thermocouple K (NiCr-Ni) 0..1200
Thermocouple T (Cu-CuNi) 0..400
Thermocouple S (Pt10Rh-Pt) 0..1600
Thermocouple R (Pt13Rh-Pt) 0..1600
Pt100 -200..600


Type Power supply
ETI741 230V AC
ETI741+SM 9...30 V DC-7...24 V AC


Dimensions:
