IM-04DCCT Relé de monitoreo de aislamiento
IM-04DCCT Relé de monitoreo de aislamiento
IM-04DCCT Relé de monitoreo de aislamiento

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: Trafox

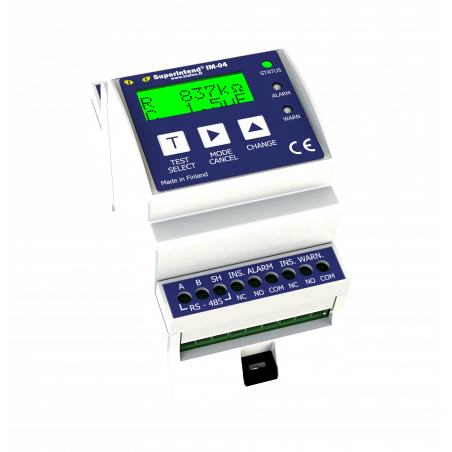

IM-04DCCT Relé de monitoreo de aislamiento

Insulation monitoring relay for DC charging stations

  • Designed for use in demanding environments
  • Suitable for use with converters
  • Measures insulation resistance and capacitance of AC/DC networks
  • Detects symmetrical insulation faults
  • A wide range of applications - DC charging stations, DC networks
  • Rated system voltage 0...1000 VDC
  • N/C and N/O selectable
  • Modbus RTU
  • Automatic adaptation to leakage of capacitance up to 5 uF
  • Selectable start delay
  • Compliant with IEC 61851-23

MEASUREMENT SPECIFICATION

Maximum input voltage 1000VDC / 690 VAC
Resistance measurement range 10kΩ...1MΩ
Capacitance measurement range 100nF-5uF
System frequency DC, 10Hz - 500Hz
Start delay 0...30 s

POWER SPECIFICATION

Nominal input voltage 110-240 VAC, 110-300 VDC
Line frequency 15 - 460 Hz

GENERAL

Dimensions (W x L x D) IM-04DCCT 54 x 110 x 62 mm
Housing material plastic
Mounting interface DIN rail clamp or screw mounting
Temperature range -25°C … + 55°C

STANDARDS

Measurement IEC 61557-8:2014
Security IEC 61010-1:2010 (wydanie trzecie)
IEC 60664-1 i IEC 60664-3
EMC IEC 61326-2-4
CISPR 11 / EN55011
IEC61000-4-2
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
IEC61000-4-6
IEC61000-4-11
traction vehicle IEC 61851-23
charging station IEC 61851-23
