Fabricante: GENERI

Aparato de control y control ex para la minería.

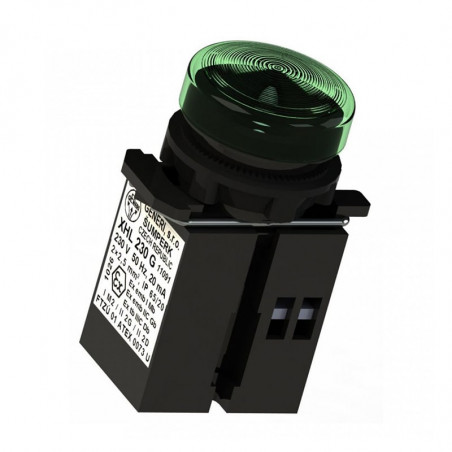

Ex-proof indicator typeXHL…
Przeciwwybuchowa lampki XHL Type of protection:    IM2 Ex emb I /  II 2GD Ex emb tD II
Service temperature: - 400C do + 850C
IP protection Head: IP 65
IP protection Contacts: IP 20
Conductor cross-section: 2×0,35 mm2 do 2×2,5 mm2
Neck dimensions: Ø 22,5 mm
Total dimensions: (40 × 23 × 60) mm
Body dimensions: (40 × 23 × 48) mm
Nominal current: 20 mA
Maximum current:: 30 mA, impulse 100 mA
Order No.: XHL 230 Y
    Nominal voltage: - 6 V, 12 V, 24 V, 48 V, 110 V, 230 V AC/DC; 110 V, 230 V AC Colour: RED, BLUE, YELLOW, GREEN, WHITE

Ex-proof indicator type XHL…/JB– intrinsically safe
Ex-proof indicator type XHL…/JB– intrinsically safe
Type of protection: IM1 Ex ia I  II 2GD T68°C Ex ia tD IIC T6
Ambient temperature: - 40°C do + 60°C
IP protection Head: IP 65
IP protection Contacts:IP 20
Conductor cross-section: 2×0,35 mm2 do 2×2,5 mm2
Total dimensions: (40 × 23 × 60) mm
Body dimensions:(40 × 23 × 48) mm
Nominal current: 10 mA
Neck dimensions: Ø 22,5 mm
Maximum input voltage „Ui“: 9; 17 i 28,2 V AC/DC
Order No.: XHL 24 W/IB
    Nominal voltage - 6 V, 12 V, 24 V AC/DC Colour :RED, BLUE, YELLOW, GREEN, WHITE

Ex-proof fuses typeXFU…
Ex-proof fuses typeXFU…
Type of protection: I M2 Ex ema I IP20  II 2GD Ex ema tD II IP20
Service temperature: -60°C do +84°C
Nominal voltage: 110 V DC, 250 V AC
Conductor cross-section:: 2×0,35 mm2 do 2×2,5 mm2
Dimensions (w × h × d): (40 × 23,5 × 41,5) mm
Order No.: XHU F 100 H
    Time delay:
FFvery quick breaking,
Fquick breaking,
Mnormal,
Tdelayed,
TT very delayed		 Nominal current: 50; 63; 80; 100; 125; 160; 200; 350; 315; 400; 500; 630; 800 mА
1; 1,25; 1,6; 2; 2,5; 3,15; 4; 5; 6,3; 8; 10; 12,5; 16 A

Breaking capability (Ik):
H (1500A),
E (150A),
L(35A)

BEx-proof termination elements typeXZ..
BEx-proof termination elements typeXZ..
Type of protection: I M2 / II 2GD  Ex emb tD I/II T6 IP 20
Service temperature: -55°C do +84°C
Nominal voltage, current, impedance R, capacitance C, diode type, etc. please see the Order No.
Conductor cross-section: 2×0,35 mm2 do 2×2,5 mm2
Dimensions (w × h × d): (40 × 23,5 × 42) mm
Order No.: XZ R 680
    Type of termination element:
D(diode),
R(resistor),
RC(resistor and capacitor),
V(varistor		 Value of the termination element: e.g. 680 Ω, 4k7, … resistor value (for Relement); 400 V, … Nominal voltage
(for Varistor and RCelement); 1 Anominal current (for Diode

EX COMPONENTS – POTENTIOMETERS

Ex-proof potentiometer typeX195RP


Ex-proof potentiometer typeX195RP
Type of protection:I M2 Ex d I
Service temperature: -60°C +85°C
Load: 1W
Max. collector current: 100 mA
Max. nominal voltage: 250 V AC/DC
Impedance characteristics: liniowy
Nominal impedance: 47R -2M2
Values available: 1K, 2K, 5K, 10K
Shaft diameter: Ø6 mm
Connection: 3 wyprowadzone przewody0,35 mm2, każdy o standardowej długości 30 cm
