Fabricante: RAFI

RAFIX 22 FSR - Interruptores rotativos

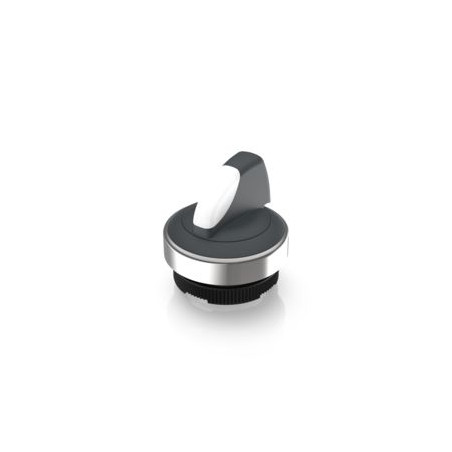

High-durability rotary selector switch. The white part of the switch is translucent and can be illuminated if needed. Colored LED illumination is available as an option.

Illumination capability Switching function Rotation angle Catalog number
YES Momentary 1 x 40° 1.30.282.001/2201
YES Momentary 2 x 40° 1.30.282.026/2201
YES Constant 1 x 90°, L-shaped 1.30.282.101/2201
YES Constant 1 x 90°, V-shaped 1.30.282.201/2201
YES Constant 2 x 60° 1.30.282.301/2201

RAFIX-schema

Dimensions
Collar diameter 31.3mm
Height 12.2mm
Button hole 22.3mm
Mechanical Properties
Mounting Threaded
Button type Momentary
Tightening torque 1.2Nm
Button travel 4mm
Maximum force 100 N
Others
Operating temperature range -40 – 80°C
IP rating (front side) IP65
ROHS Yes
REACH Yes
