Fabricante: DACPOL SERVICE

Rectificador de tiristores trifásicos PT3R-400/540 -_______- RY1 400F-6T-K / P

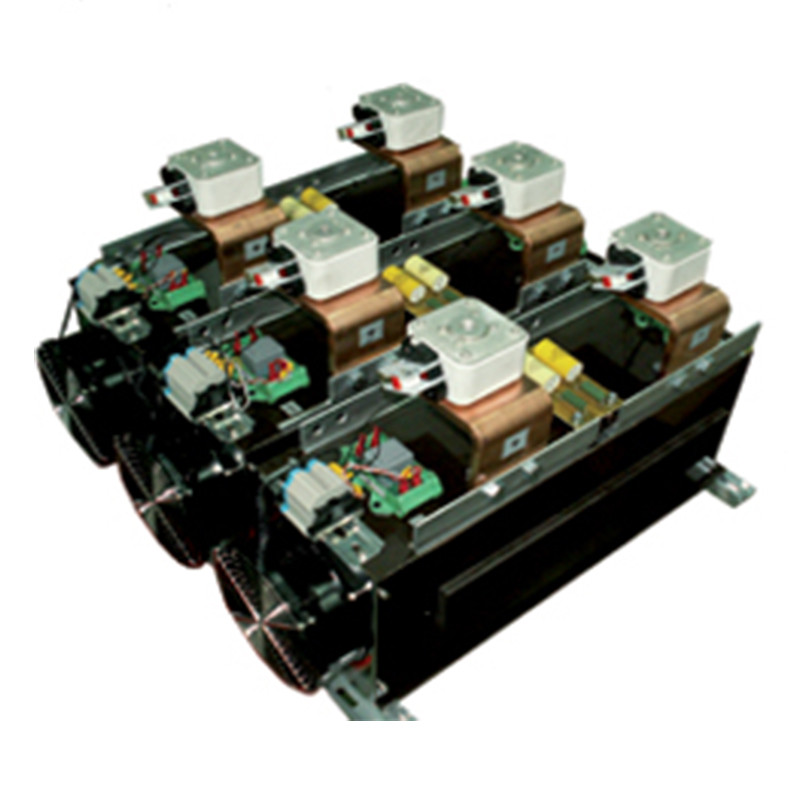

Three-phase thyristor rectifier PT3R-400/540-___-RY 1 400F-6T-K/P


Use:
Power supply for baths used in cataphoresis processes (dip painting).


Features:

  • High durability
  • Easy to install
  • Surge protection
  • Thermal protection
  • Protection of individual semiconductor elements
  • Ability to customize the power of the charger according to your requirements

Technical data

Power supply*
3x400 V, 50 Hz/60 Hz
Output voltage
0 ÷ 540 VDC
Current load
1100 ÷ 1800A
Voltage regulation range
0 ÷ 100%
Control type
 phase
Proprietary control system
gate
Surge protection
RC suppressors
Short-circuit protection
 fast fuses
Temperature sensor
Pt 100
Thermal switch
80 °C ± 5 °C
Cooling
forced (3 fans)
Ingress Protection
IP00
Insulation test voltage
2,5 kV/60 s
Operating temperature range
0 °C ÷ +40 °C
Storage temperature range
0 °C ÷ +55 °C
Relative humidity
up to 90%
Dimensions H x W x L [mm]
  410 x 625 x 425

Attention
* Can be adapted to other supply voltages on request.


Dimensions [mm]
