MANIPACK - empaquetadora de billetes

Service of the banknote packaging/folding machines MANIPAK series


General information

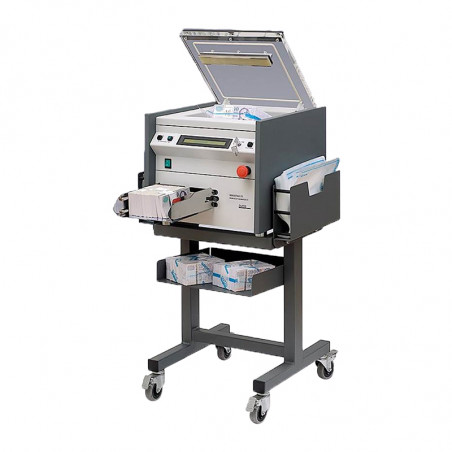

MANIPAK IV is a banknote packaging machine made by Hungarian engineers, which provides fast, safe and fully hygienic vacuum packaging of banknotes in plastic bags.

The packaging unit holds 1000 banknotes per bag. When the button is pressed, the jaws compress the banknotes and then place them in the bag. After removal, the banknotes are placed in a special chamber for vacuum sealing. The jaws can be adjusted according to the amount of banknotes.

Settings can be adjusted on the user panel on the front of the machine. During operation, you can monitor the machine's operating status on the LCD display next to the panel.



Technical data

Power supply 230 V, 50 Hz
Max. input power 600 VA
Average input power 220 VA (within one packing cycle)
Packing capacity 3 bags/min
Temperature - sealing, sheering 9 different settings
Sealing length 240 mm
Device dimensions (W x D x H) 430 x 445 x 375 [mm]
Vacuum chamber dimensions (W x D x H) 280 x 250 x 85 [mm]
Weight approx. 50 kg
Banknotes (HUF and EUR) - every denomination 1000 banknotes/bundle
Banknotes (other) - max. 180 x 80 mm up to 195 mm thickness/bundle
Recommended material of bags
 polyethylene - 120-140 µm thickness
multi-layer foil (polyethylene/polyamide) - 75-90 µm thickness
Recommended dimensions of bags
 225 x 310 mm
205 x 290 mm
