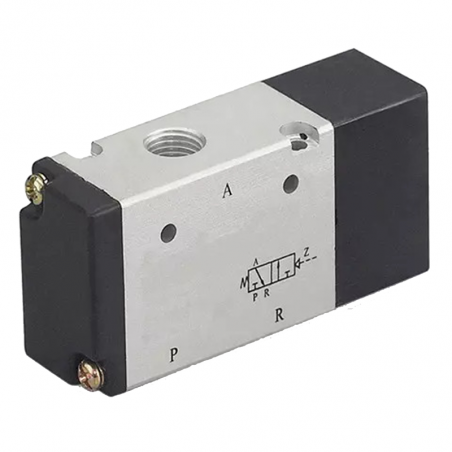

Válvula de aire
  • Válvula de aire

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: AirTAC

Válvula de aire

Characteristic
- External valve type 3/2 ; 5/2 ; 5/3. Piloted with air.
- Fast reaction, small dimensions, small weight, easy to assemble- 5/3
- Long lifetime (more than 30.000.000 cycles ), small friction, start at low pressure.
- Doesn't require lubrication.
- Arbitrary assemble position.

Series 3A100 3A200 3A300 A100 4A200 4A300 4A400
Medium Air
Control External
Terminal 1/8"  1/4" 1/8"  1/4" 1/4"  3/8" 1/8"  1/4" 1/8"  1/4" 1/4"  3/8" 1/2"
Valve type 3/2  5/2, 5/3
Temperature  -20 do -70°C
Lubrication Doesn't require
Operation pressure 1.5~8.0bar (0.15~0.8MPa) (21~114psi)
Max pressure 12.0bar (1.2MPa) (170psi)
Max frequency 5 cycles/sec


Menos
Lee mas

Envíe una consulta

¿Estás interesado en este producto? ¿Necesita información adicional o precios individuales?

Contacta con nosotras

SOLICITA EL PRODUCTO close
Mensaje enviado con éxito.
SOLICITA EL PRODUCTO close
Vistazo

Añadir a la lista de deseos

Usted debe estar conectado

Characteristic
- External valve type 3/2 ; 5/2 ; 5/3. Piloted with air.
- Fast reaction, small dimensions, small weight, easy to assemble- 5/3
- Long lifetime (more than 30.000.000 cycles ), small friction, start at low pressure.
- Doesn't require lubrication.
- Arbitrary assemble position.

Series 3A100 3A200 3A300 A100 4A200 4A300 4A400
Medium Air
Control External
Terminal 1/8"  1/4" 1/8"  1/4" 1/4"  3/8" 1/8"  1/4" 1/8"  1/4" 1/4"  3/8" 1/2"
Valve type 3/2  5/2, 5/3
Temperature  -20 do -70°C
Lubrication Doesn't require
Operation pressure 1.5~8.0bar (0.15~0.8MPa) (21~114psi)
Max pressure 12.0bar (1.2MPa) (170psi)
Max frequency 5 cycles/sec
