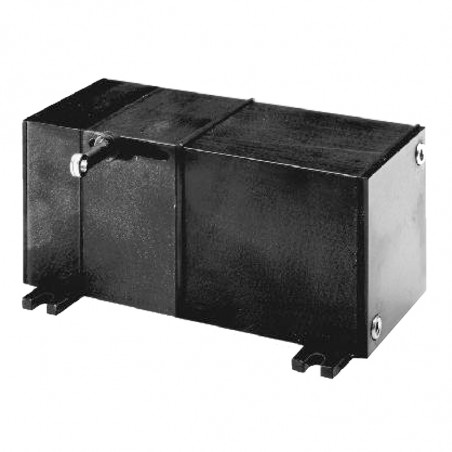

Transductores de distancia de recarga PT5
  • Transductores de distancia de recarga PT5

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: Celesco

Transductores de distancia de recarga PT5

PT5 transducers group for industrial usage(up to 6350 mm)- Measurement range 6350 mm

- Compact casing
- Easy to assemble

Dane techniczne

Group PT5A PT5AV PT5CN PT5DC PT5DN PT5E PT5MA PT5232
Output Signal Options potentiometer potentiometer and tachometer Canbus J1939 voltage Device net encoder current RS232


Technical data

Measurement range  [mm] 6350 6350 6350 6350 6350 6350 6350 6350
Accuracy 0,25%-0,10% 0,25%-0,10% 0,25%-0,10% 0,25%-0,15% 0,25%-0,10% 0,02%-0,04% 0,28%-0,15% 0,25%-0,10%
Repeatability 0,02% 0,02% 0,05% 0,05% 0,02% 0,02% 0,05% 0,02%
Durability 250k...2,5 mln 250k...2,5 mln 250k...2,5 mln 250k...2,5 mln 250k...2,5 mln 5 mln 250k...2,5 mln 250k...2,5 mln

Casing
Material Anode Aluminium Anode Aluminium Anode Aluminium Anode Aluminium Anode Aluminium Anode Aluminium Anode Aluminium Anode Aluminium
Protection level IP65/67 IP65/67 IP65/67 IP65/67 IP67 IP65/67 IP65/67 IP67
Operation temperature -40...90°C -40...90°C -40...85°C -40...90°C -40...85°C -17...71°C -40...90°C -40...90°C
Vibrations Do 10g @
2000 Hz max
Do 10g @
2000 Hz max
Do 10g @
2000 Hz max
Do 10g @
2000 Hz max
Do 10g @
2000 Hz max
Do 10g @
2000 Hz max
Do 10g @
2000 Hz max
Do 10g @
2000 Hz max


Measurement cord

Noble steel covered with nylon [inch] * ø 0,034 ø 0,034 ø 0,034 ø 0,034 ø 0,034 ø 0,034 ø 0,034
Noble steel ø 0,047 ø 0,047 ø 0,047 ø 0,047 ø 0,047 ø 0,047 ø 0,047
Thermoelastic plastic ø 0,062 ø 0,062 ø 0,062 ø 0,062 ø 0,062 ø 0,062 ø 0,062


Electrical connection

Tips for soldering - - - - - - - -
Wires - - - - - - - -
Cables 7,5 m Cable 7,5 m Cable - 7,5 m Cable - 7,5 m Cable 7,5 m Cable 7,5 m Cable
Plug micro plug 4pol.+
3,5 m Cable;
metal plug/plastic
6 pol.+socket
metal plug-/
plastic
6 pol.+socket
micro plug  5 pol
micro plug
5 pol.+socket
(also 5m cable)
micro plug4 pol.+
3,5 m Cable;
metal plug/plastic
6 pol.+socket
micro plug  5 pol
micro plug
5 pol.+socket
(also 5m cable)
micro plug 4pol.+
3,5 m Cable;
metal plug/plastic
6 or 18 pol.+socket
micro plug 4pol.+
3,5 m Cable;
metal plug/plastic
6 pol.+socket
Plastic plug
6 pol.+socket
*) 1 inch= 25,4 mm
