Fabricante: M-SYSTEM

W2ms - Convertidor de señal con una entrada resistiva con una salida doble

  • W2MS

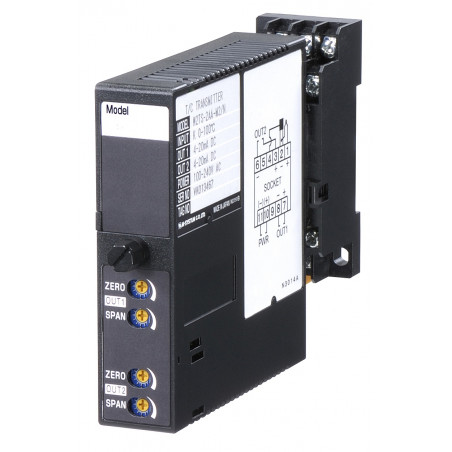

W2MS is a converter with a resistance input with two outputs.


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without the need to interfere with Wiring
  • DC / AC Power
  • Dual Output
  • DIN Rail Mounting
  • 2000V AC Insulation
  • Possibility options with faster response time

    • Types of inputs: resistive 100Ω - 10kΩ
    Types of outputs: current or voltage
    Possibility of making the range of inputs / outputs on special order.


    < td style = "padding-left: 20px"> M3 screw terminals < / table>
    Menos
    Lee mas

    Envíe una consulta

    ¿Estás interesado en este producto? ¿Necesita información adicional o precios individuales?

    Contacta con nosotras
    SOLICITA EL PRODUCTO close
    Gracias por enviar tu mensaje. Responderemos lo antes posible.
    SOLICITA EL PRODUCTO close
    Vistazo
    enviar una consulta

    Añadir a la lista de deseos

    Usted debe estar conectado

    W2MS is a converter with a resistance input with two outputs.


    Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without the need to interfere with Wiring
  • DC / AC Power
  • Dual Output
  • DIN Rail Mounting
  • 2000V AC Insulation
  • Possibility options with faster response time

    • Types of inputs: resistive 100Ω - 10kΩ
    Types of outputs: current or voltage
    Possibility of making the range of inputs / outputs on special order.


    Wire connection
    Separation Input / Output / Power
    Dielectric strength DC: 2000V AC
    AC: 1500V AC
    Ranges selection To be determined when ordering
    Double exit Yes
    Power AC / DC
    Operating Temperature - 5 to + 55 ° C < / td>
    Mounting DIN rail
    Dimensions 29.5x88.5x124mm
    < td style = "padding-left: 20px"> M3 screw terminals < / table>
    Menos
    Lee mas
    Comentarios (0)
    Wire connection
    Separation Input / Output / Power
    Dielectric strength DC: 2000V AC
    AC: 1500V AC
    Ranges selection To be determined when ordering
    Double exit Yes
    Power AC / DC
    Operating Temperature - 5 to + 55 ° C < / td>
    Mounting DIN rail
    Dimensions 29.5x88.5x124mm
