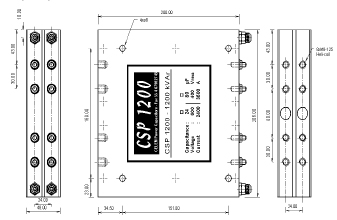

Dimensions[mm]
Electrical data

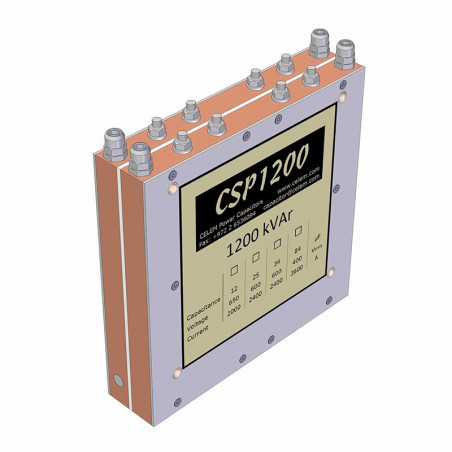

| Type | CSP 1200 | |||||||
|---|---|---|---|---|---|---|---|---|
| Dimensions(LxWxH) | [mm] | 217x206x48 | ||||||
| Weight | [kg] | 10 | ||||||
| Capacity(±10%) | [µF] | 25 | 34 | 34 | ||||
| Sinusoidal Voltage | [VRMS] | 600 | 400 | |||||
| Impulse voltage | [V] | 850 | 570 | |||||
| Max current | [A] | 2400 | 3600 | |||||
| Max power | [kVAr] | 1200 | ||||||

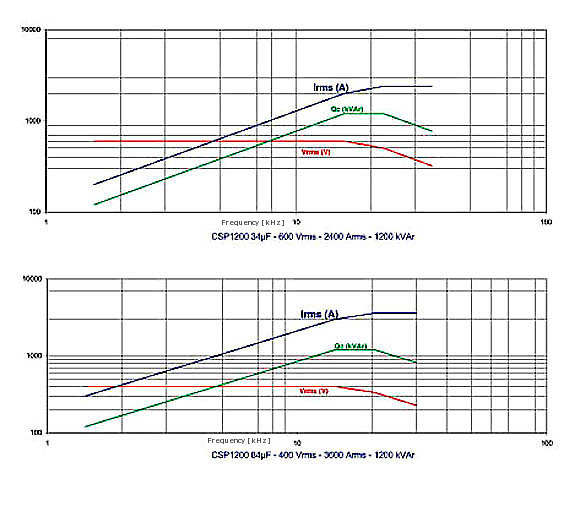

| Frequency range @ Full power | [kHz] | 12-31 | 16-22 | 14-20 | ||||
| Dissipation Inductance | [nH] | <5 | ||||||
Characteristics
![]() |
![]() |
