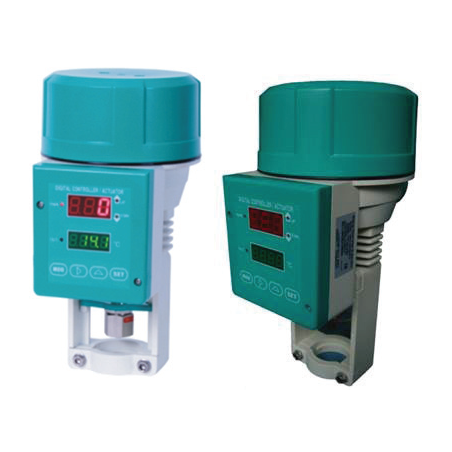

Actuador eléctrico para válvulas GDCA-20P / 35P
Actuador eléctrico para válvulas GDCA-20P / 35P

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: GINICE KOREA

Actuador eléctrico para válvulas GDCA-20P / 35P


Features:

  • Integrated [&] Compact actuator
  • Built-in controller for temperature [&] humidity 　
  • No need to install temperature controller at site
  • FND [&] LED lamp indicating the state of valve
  • Self-Calibration using the auto setting button
  • Modulating operation using 4~20mA
  • Simple [&] Convenient application schematics
  • For Air handling unit, Heating/Cooling system, Chilled ceiling or Condensing boiler etc


Technical data

Item GDCA-20P GDCA-35P
Nominal Stroke (mm) 20mm  40mm
Nominal Force (KN) 2000N (2.0)  3500N (3.5)
Operating Time (Sec) 50sec (0.4mm/s)  100sec (0.4mm/s)
Power Supply (V) 220VAC ± 10%
Operating mode 4~20mA,
Input Signal Indicating Opening /Closing using 0-100%
Output Signal Power, Up, Down [&] Output state
Operation Temperature -15 ~ 65℃
Humidity 5 ~ 95% Rh
Enclosure IP 54 (DIN4050)
Conduit Entries PF1/2ｘ 2EA
Net Weight (Kg) 4.2Kg  4.5Kg
