Transformadores actuales con salida de relé XAC ... / XAT

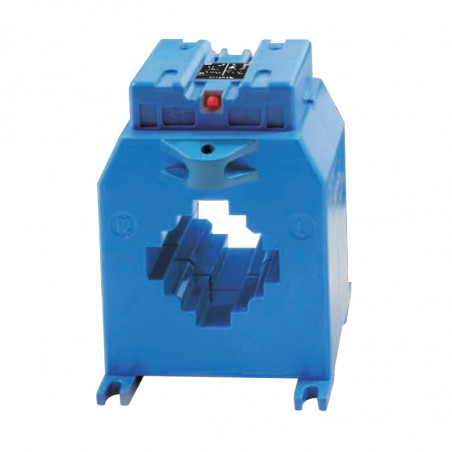

New CT with programmable output range.
This innovative product permits to set an overcurrent threshold on the some CT withou interposing any measuring relays and without any auxiliary supply source.
The electronic board is fitted inside the CT frame. Two miniature trimmers are available to set the threshold value and the alarm intervention delay.
These new CTs characteristics allow to get a cost reduction and a very simple wiring.

Technical data

Self estinguishing thermoplastic material		UL94-V0
Operating frequency		45 do 65 Hz
Insulation reference voltage		0,72 kV
Test voltage		3 kV 1min. 50 Hz
Insulation		E
Protection degree		IP 20
Continuous overcurrent		1,2 In
Rated short-time thermal current (l th)		5 In(5sec.)
Alarms	1
Contact rating		100mA, 250Vac
Alarm intervention indication		LED
Alarm type		MAX
Contact type
	- normally open	N.O. (cod. X...XMO)
	- normally closed	N.C. (cod. X…XMC)
Alarm configuration		10 do 120% In
Intevention delay		0 do 6 s.
Hysteresis		5%
Operating temperature		-10 +50 oC
Storage temperature		-30 +70oC
Manufactured according		IEC/EN 60044-1, VDE, BS, UTE
Integrated output terminals		6 mm2

Type	XAC032…	XAC040…	XAT061	XAT101
Opening
Cable	Φ23	Φ32	Φ51
Bar size	32x10 mm	40x 10 mm	61 x 31 mm	101x55 mm

Pin description and diagram

Normally open alarm contact

RANGE (alarm range)	XAC032…	XAC040…	XAT061…	XAT101…
	Code
50 A (5 to 60A)	XAC032050XMC
100 A (10 to 120 A)	XAC032100XMC
150 A (15 to 180A)	XAC032150XMC
250 A (25 to 300 A)	XAC032250XMC
400 A (40 to 480 A)	XAC032400XMC	XAC040400XMC
600 A (60 to 720 A)	XAC032600XMC	XAC040600XMC	XAT061600XMC
1000 A (100 to 1200 A)		XAC0401K0XMC	XAT0611K0XMC	XAT1011K0XMC
1500 A (150 to 1800 A)			XAT0611K5XMC	XAT1011K5XMC
2500 A (250 to 3000 A)				XAT1012K5XMC

: It is possible to set the Max. alarm threshold from10% to 120% of the current range (Example: Range=100A - Max. alarm threshold from 10A to 120A)

Normally closed alarm contact

RANGE (alarm range)	XAC032…	XAC040…	XAT061…	XAT101…
	Code
50 A (5 to 60A)	XAC032050XMO
100 A (10 to 120 A)	XAC032100XMO
150 A (15 to 180A)	XAC032150XMO
250 A (25 to 300 A)	XAC032250XMO
400 A (40 to 480 A)	XAC032400XMO	XAC040400XMO
600 A (60 to 720 A)	XAC032600XMO	XAC040600XMO	XAT061600XMO
1000 A (100 to 1200 A)		XAC0401K0XMO	XAT0611K0XMO	XAT1011K0XMO
1500 A (150 to 1800 A)			XAT0611K5XMO	XAT1011K5XMO
2500 A (250 to 3000 A)				XAT1012K5XMO

It is possible to set the Max. alarm threshold from10% to 120% of the current range (Example: Range=100A - Max. alarm threshold from 10A to 120A)

Dimensions

XAC032	XAC040
XAT061	XAT101

Operating diagram

Signal alarm configuration

LED alarm signal

Normally open contact

Normally closed contact

Current transformers with relay output XAC… / XAT… are modern devices that, thanks to a split core or openable core and a built-in sensor, allow accurate current measurement in AC and DC installations, both in three-phase and single-phase systems. The primary and secondary windings work with measuring equipment and automation systems, providing current monitoring in conductors, DIN rails, and other electrical installation elements.

Thanks to high accuracy, class 1, and a wide range of current values (from 5A to 200A), these transformers enable precise secondary current measurement, easy connection via terminals, and integration with monitoring and automation systems. The offer includes models providing reliable measurement in both industrial and energy applications, ensuring safety and operational stability in any installation.
