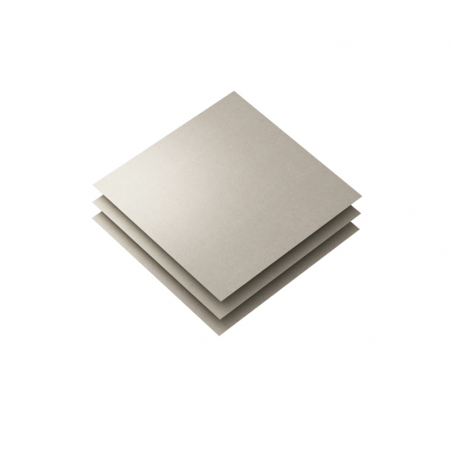

MAT absorbente EFG2
  • MAT absorbente EFG2

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: KEMET

MAT absorbente EFG2

Type EFG2 (Red Phosphorus free)
Effective frequency 1 - 10 GHz
Operating temperature -40 ÷ 105 ℃
Thickness [mm] 0,1 0,2 0,3
Specific gravity 3.9
Surface resistivity [Ω/□] 1.0 x 106
Approved standard UL94 HB (E176124)
Enviroment RoHS compliant, Halogen free/PVC free/Lead free/Red Phosphorus free
Reflowing (260 ℃) Please use double sided tape with reflowing



Standard dimensions





Permeability at 3MHz

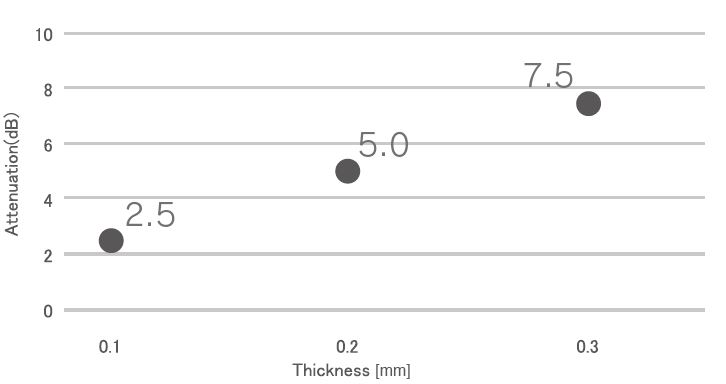

Decoupling characteristics at 700MHz





Product number
