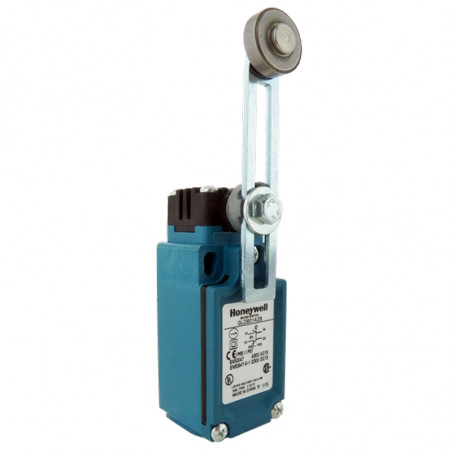

GLD - interruptor en carcasa de plástico con podwónej aislamiento
  • GLD - interruptor en carcasa de plástico con podwónej aislamiento

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: Honeywell

GLD - interruptor en carcasa de plástico con podwónej aislamiento

Technical data

Mechanical life: up to 15 million operations
Degree of protection: IP66
Temperature range: -25...85°C
Storage: -40...85°C
Approvals: IEC 60947-5-1
  EN 60947-5-1
  AC15 A300
  DC13 Q300
  UL & CSA
Vibration 10g conforming to IEC 68-2-6
Shock 50g conforming to IEC 68-2-27
Terminal marking to EN 50013

Dimensions [mm/in]

  Fast contact
1NZ/1NO
Slow contact
Break before make
1NZ /1NO
Lever type
O.F. - Operating Force
R.F. - Release Force
R.T. - Pretravel
O.T. - Overtravel
D.T. - Differential travel
O.P. - Operating Position
F.P. - Free Position

Leverage side
a metal roller


Side lever

Pusher with roller
* - Pewne otwarcie zgodnie z IEC/EN60947-5-1-3
The top lever with roller


rod spring





  Slow contact
Break before make
1NZ/1NO
Slow contact
2NZ
Lever type
O.F. - Operating Force
R.F. - Release Force
R.T. - Pretravel
O.T. - Overtravel
D.T. - Differential travel
O.P. - Operating Position
F.P. - Free Position

Leverage side
a metal roller


Side lever

Pusher with roller
* - Pewne otwarcie zgodnie z IEC/EN60947-5-1-3
The top lever with roller


rod spring
