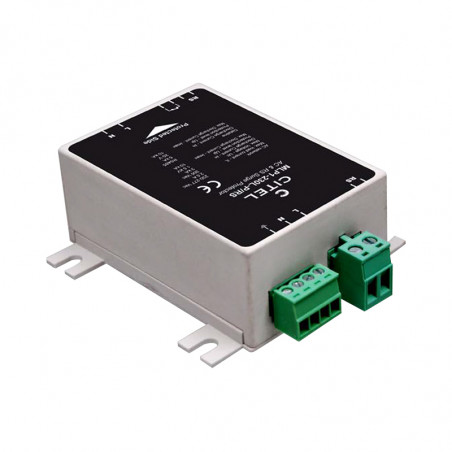

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: CITEL

2 + 3 arrestos de sobretensión (C + D) Serie MLPX-230X-X-2L para instalaciones de 2 fases

LED street lighting surge protector MLPx-230x-x-2L

• LED street lighting surge protector
• Protection for 2 phases (Power/Control)
• Class I and Class II configuration
• IP65 version
• Wire or Screw connection
• Imax : 10 kA
• Remote signaling option
• IEC 61643-11 and EN 61643-11 compliance



Ograniczniki przepięć typu 2+3 (C+D) Seria MLPx-230x-x-2L dla instalacji 2-fazowej

Characteristics

Description

MLPx-230-x-x-2L

Nominal voltage 230-277V AC
Max. load current IL 2,5A
Max. operating voltage L-N UC 305V AC
Max. operating voltage L-L UC 480V AC
Leakage current IPE none
Nominal discharge current 15 x 8/20 µs impulse In 5kA
Maximum discharge current
1 x 8/20 µsn
Imax 10kA
Combinaison waveform
1.2/50 µs - 8/20 µs
Uoc 10kV / 5kA
Protection level at In Up 1,5kV
Admissible short-circuit curent ISCCR 10000A
Mechanical characteristics
Thermal disconnector internal
Dimensions see diagram
The diameter of connecting cable MLPx-x-W cable 1,5 mm²
The diameter of connecting cable MLPx-x-P ścrew uo.  1,5 mm²
Signalling damage AC network cutoff and LED off
Remote signaling disconnection dry contact 250 VAC - 30 VDC - 3 A at MLPx-230S-x-2L
Mounting wall or plate
Operating temperature -40 do  +85°C
Housing material Polycarbonate UL94-V0
Insulation class Class  I (MLP1-x) - Class  II (MLP2-x)
Standards compliance
IEC 61643-11         International Class II+III test
EN 61643-11          Europe Class II+III test
Description

MLP1-230L-W-2L

MLP2-230L-P-2L

MLP2-230S-P-2L

MLP2-230S-W-2L

Nominal voltage 230 - 277V AC
Max. load current IL 2,5A
Max. operating voltage L-N Uc 305V AC
Max. operating voltage L-L Uc 480V AC
Leakage current IPE none non relevant none
Nominal discharge current 15 x 8/20 µs impulse In 5kA
Maximum discharge current
1 x 8/20 µs
Imax 10kA
Combinaison waveform
1.2/50 µs - 8/20 µs
Uoc 10kV / 5kA
Protection level at In Up 1,5kV
Admissible short-circuit curent ISCCR 10000A
Mechanical characteristics
Thermal disconnector internal
Dimensions see diagram
Connection to AC line wire max..  1,5mm² screw max..  1,5mm²
Failsafe behavior AC network cutoff and LED off SPD Disconnection from AC and LED off
Remote signaling disconnection no dry contact 250 VAC - 30 VDC - 3 A
Mounting wall or plate
Operating temperature -40 do  + 85°C
Housing material Polycarbonate UL94-V0
Ip rating IP65 IP20 IP65
Insulation class Class  I Class  II Class  I
Standards compliance
IEC 61643-11 (AC SPD) Class II+III test
EN 61643-11 (AC SPD) klClass II+III test
IEC 61643-21 (communication stop - C2

Dimensions and Diagram

Ograniczniki przepięć typu 2+3 (C+D) Seria MLPx-230x-x-2L dla instalacji 2-fazowej wymiary

Ograniczniki przepięć typu 2+3 (C+D) Seria MLPx-230x-x-2L dla instalacji 2-fazowej schemat

GDT: Gas tube
G3: 3-pole gas tube
V: Varistor
Ft: Thermal Fuse
t°: Termal disconnection mechanism
REMOTE: Dry contact for temote signaling
MI: Disconnection indicator
