2/2 Válvulas electromagnéticas de carretera
  • 2/2 Válvulas electromagnéticas de carretera

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: AirTAC

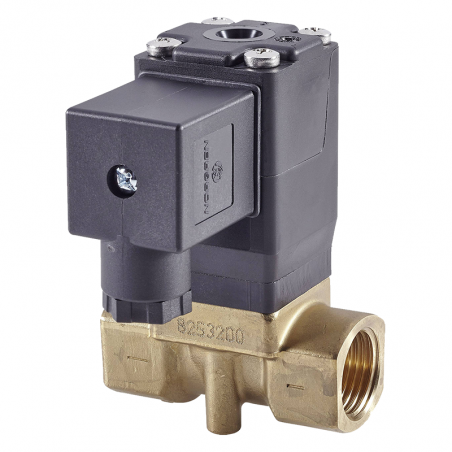

2/2 Válvulas electromagnéticas de carretera

- 2/2 electromagnetic valves, NC, fast reaction, big flow.
-Brass body or 304 steel, coil class B, valve seal type NBR, EPDM or FPM-F depending on medium
- CoilIP65 in DIN execution or with lead out cables.

Series 2(K)W 2(K)S 2(K)L 2P 2V 2PMV 2PV
Medium Air
Control Direct or internal Direct Direct or internal Internal
Terminal 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 1/8" 1/4" 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1/2" 3/4" 1"
Type 2/2
viscosity < 20 CST
Body brass Stainless steel Plastic brass
Voltage DC ±10% ±10%
AC ±15% -15% ~ 10%
Coil execution DIN or with lead out cables. Cables DIN or with lead out cables.
Coil type - insulation Class H Class B
