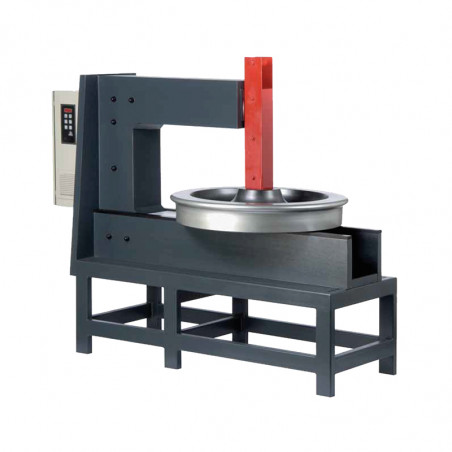

Estándar gigante EN DL-700 40 KVA Calentador de inducción
  • Estándar gigante EN DL-700 40 KVA Calentador de inducción

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: Bega Special Tools

Estándar gigante EN DL-700 40 KVA Calentador de inducción

Specifications

Type BETEX GIANT Standard en DL-700
Facility power 40 kVA
Voltage/Amp* 400/500V
100A
Frequenz Hz 50/60Hz
Yokes, standard mm/ set 1 optional
Yokes, standard mm/ set 2 60,80,100,150*3
Swivel arm -
Max. weight. ± kg - bearings 1500/2000*3
- other parts 900/1500*3
Min. ID Ø: mm 85*3
Max. OD Ø :mm*A 1400/1700*3
Max. width: mm *B 620/700*3
Max. widthd at *C
horizontal heating: mm		 440/730*3
Cross section poles mm *D 150*3
Pole height mm 660/740*3
Temperature control
ºC/ F		 - max reach* 240/350ºC*2
- magnetic probe yes
- digital display yes
Time control - max. reach 0-99 min.
- digital display yes
Sound signal yes
Error report yes
Temperature hold yes
Automatic power reduction yes
Automatic demagnetising,<2A/cm yes
Thermal safety guard yes
Support for horizontal heating yes
Dimensions mm (lxbxh) 1750x600x1470*3
Weight heater kg
excl. Yokes		 660/800 kg*3
Electric crane for yokes optional
Alarm signal optional
Mobile optional



*2 On request: 350ºC with heavy duty sensor and extra isolation
*3 Subject to power and execution
On request:other voltage/ amperage/ higher temperature up to 480ºC

Heating times are subject to the relationship between:
• Min. bore and max. outside diameter, width, weight
• Required temperature and material type
• Available powerc
