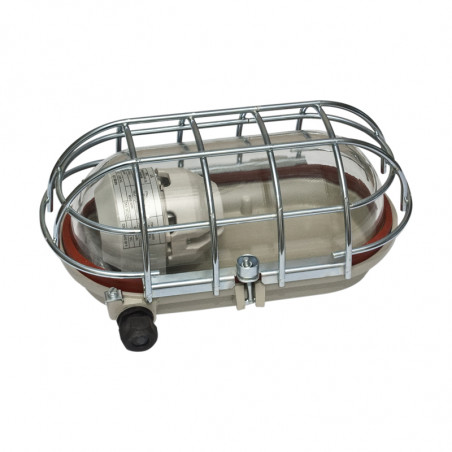

Luminaria de canal - TE0403.24

The luminaire is designed to light the industrial areas and facilities, also outdoor spaces with an explosion hazard of gases, vapors and flammable fogs mixed with air.

Application: Zones 1 i 2.
The luminaire is also destined to be used in mine industry.

Construction
Housing: aluminium powder painted casting
for TE403.24/20 cast iron
Diffuser: borosilicate glass protected with steel gird


Technical data
ATEX II 2G Ex de I/IIC T2/T3
I M2
Working temperature -30oC < Ta < 40oC
-30oC < Ta < 60oC
Degree of protection IP 54
Shock resistance IK 08
Insulation class I
Rated voltage 250V ± 10% AC
24V ± 10% AC/DC
Frequency 50 Hz (60 Hz on request)
Rated power See selection table
Lamps

Incandescent lamps, E 27 lampholder, for 25W, 40W, 60W, 100W
Halogen lamps, E 27 lampholder, for 100W
Conection terminals

terminals L1 + N for 2 x 4 mm² flexible/solid
terminals PE for 2 x 4 mm² flexible/solid
tightening torque for screw clamp 2,2 Nm
Cable entry

1 x M25x1.5 cable gland (through-wiring possible)
1 x M25x1.5 plug
Mounting Two brackets with two screws M6.

Model code

Code Category ATEX Rated valtage Lamps
(E27)		 Luminous
flux		 Wright
TE0403.24/10 II 2G Ex de IIC T2, T3 24V DC
230V AC		 100W 1500 lm
800 lm



3,8 kg
TE0403.24/11,12
(red or green glass)		 II 2G EX de IIC T3 230V AC 60W lub 40W 800 lm
450 lm
TE0403.24/20 I M2 Ex de I 230V AC 100W 1500 lm 6 kg

Dimensions

Oprawa TE0403.24 wymiary

Spare parts and accessories

Oprawa TE0403.24 części zamienne i akcesoria

Spare parts 0403.24 :
1. Lampholder E27
2. Gasket 0403.24
3. Protective glass 0403.24
Accessories 0403.24 :
4. Lightbulb 100W, 60W, 40W / 230V, 110V, 24V – IEC 60064 Lightbulb 60W, 40W / 230V – DIN 49810 Bl.4
5. II 2G Exe II cable gland M25 with gasket, type SPU25
6. I M2 Exe I trumpet-shaped cable gland, set
7. II 2G Exe II plug M25 with gasket, type SPC25
8. I M2 Exe I plug M25, set
