Fabricante: DetasUltra

DES 16M - Marcos de entrada de cables

  • 1731010216
  • Agujero 86 x 40
  • Tipo de producto Modułowe przepusty kablowe

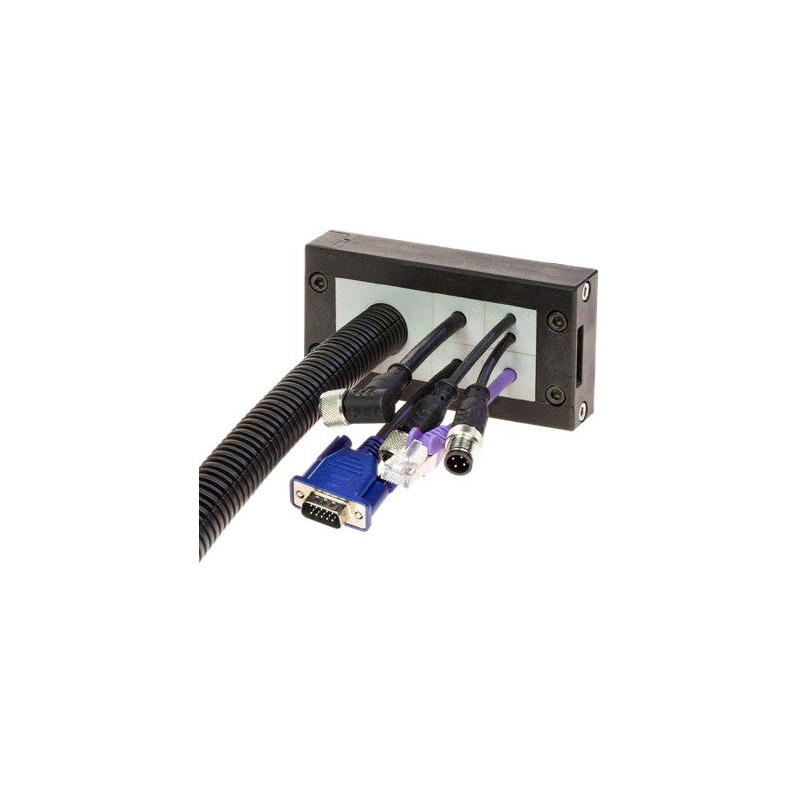

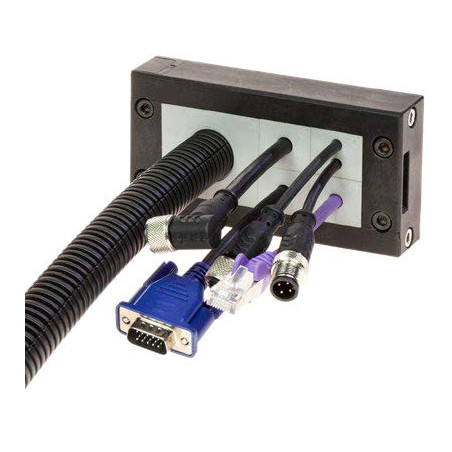

The DES 16M splittable frame allow up to 32 cables with or without connector or one or two cables up to 35mm diameter to pass through electric cabinet or machines walls. The small and big grommets can be freely positioned inside the frame.

  • Multiple configurations with small and large grommets
  • Frame screws in AISI304 Stainless Steel
  • IP54 protection
  • Strain relief acc. to  EN 62444
  • Robust construction IK10
  • External gasket included
  • Threaded inserts version on request
  • Material: PP+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm]
DES 16M 1731010216 86 x 40
