Fabricante: DetasUltra

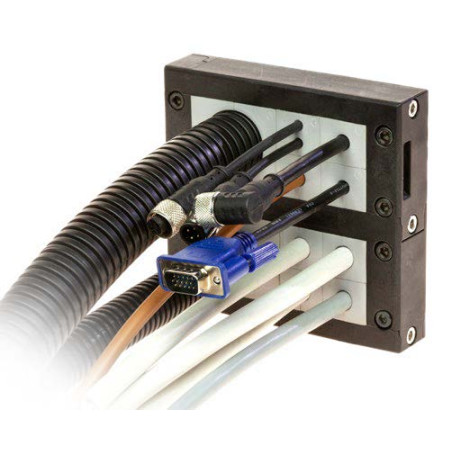

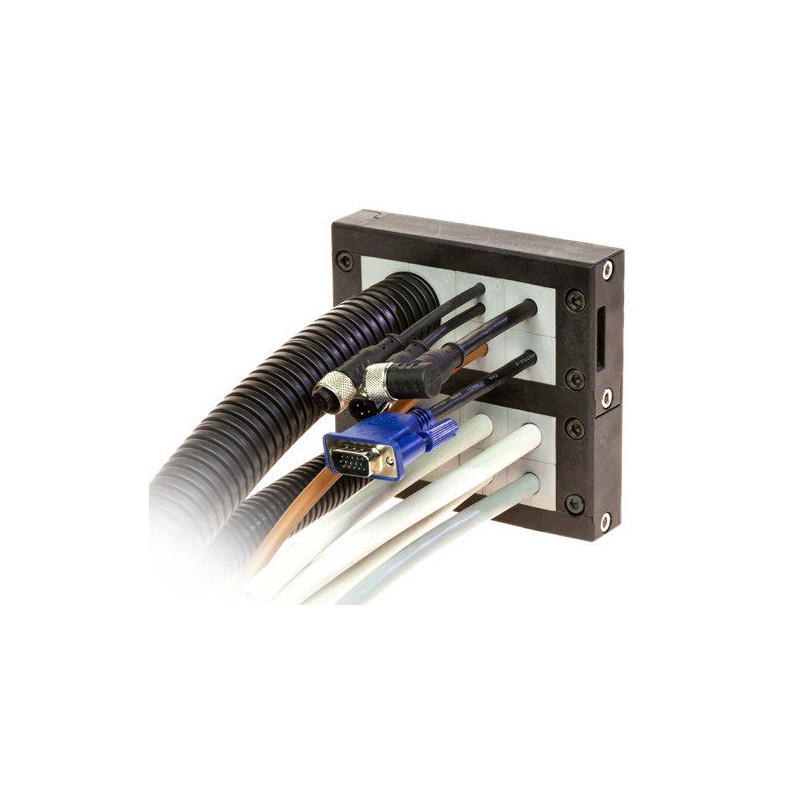

DES 16MX3 - Marcos de entrada de cables

  • 1731010263
  • Dimensiones 120 x 167
  • Agujero 86 x 144
  • Tipo de producto Modułowe przepusty kablowe

The DES 16MX splittable frames family is a modular solution for installations where a big quantity of cables need to be routed through electrical cabinets walls or machines. This solution is not only modular but it is also a general solution that can be adopted as main cables entrance.

  • Modular solution
  • Multiple configurations with small and large grommets
  • Frame screws in AISI304 Stainless Steel
  • IP54 protection
  • Strain relief acc. to  EN 62444
  • Robust construction IK10
  • External gasket included
  • Material: PP+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm] Dimensions [mm]
DES 16MX2 1731010262 86 x 92 120 x 115
DES 16MX3 1731010263 86 x 144 120 x 167
DES 16MX4 1731010264 86 x 196 120 x 219
