Fabricante: DetasUltra

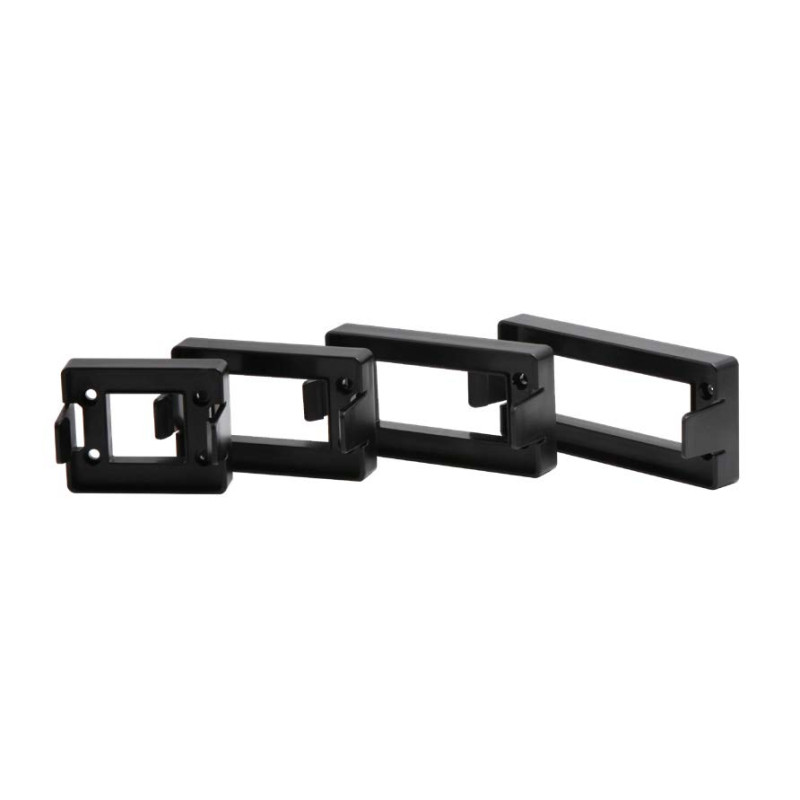

DES FLAP 24 CLICK - Marcos de montaje a presión

  • 1731010424
  • Tipo de producto Marcos de montaje a presión
  • Dimensiones 156,6 x 68,1 x 42,4
  • Agujero 112 x 39

The DES FLAP CLICK series allows DES 24 CLICK, DES 16 CLICK, DES 10 CLICK, and DES Q CLICK frames to be snapped together and is particularly suitable when the flexibility of mounting grommet frames needs to be exploited. The total absence of screws makes the operation quick and safe.

  • Solution for quick installation of DES CLICK frames
  • Self-extinguishing V0 gasket included in the delivery
  • IP54
  • IP54 certified
  • Material: PC+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm] Dimensions [mm]
DES FLAP Q CLICK 1731010408 40 x 39 84,6 x 68,1 x 42,4
DES FLAP 10 CLICK 1731010410 63 x 39 132,6 x 68,1 x 42,4
DES FLAP 16 CLICK 1731010416 86 x 39 109 x 68,1 x 42,4
DES FLAP 24 CLICK 1731010424 112 x 39 156,6 x 68,1 x 42,4
