Fabricante: DetasUltra

DES L1 - Marcos de entrada de cables

  • 1731010001
  • Tipo de producto Prensaestopas modulares
  • Agujero 21 x 18

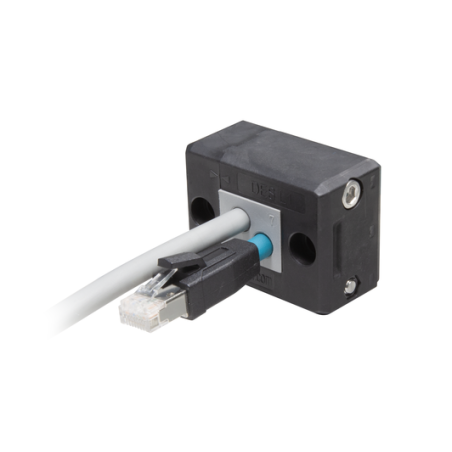

The DES L1 allows cables with connectors to pass through cabinets. Once assembled, the system guarantees the cable strain relief and high IP protection.

  • For 1 small SPP grommet
  • Frame screws in AISI304 Stainless Steel
  • IP66 certified, Nema 4X* with any combination of grommets
  • Strain relief according to EN 62444
  • Robust construction IK10
  • Overmolded gasket acc.to ULV94-V0
  • ATEX version on request
  • Threaded inserts version on request

*4X for indoor use only

  • Material: PP+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm]
DES L1 1731010001 21 x 18
