Fabricante: DetasUltra

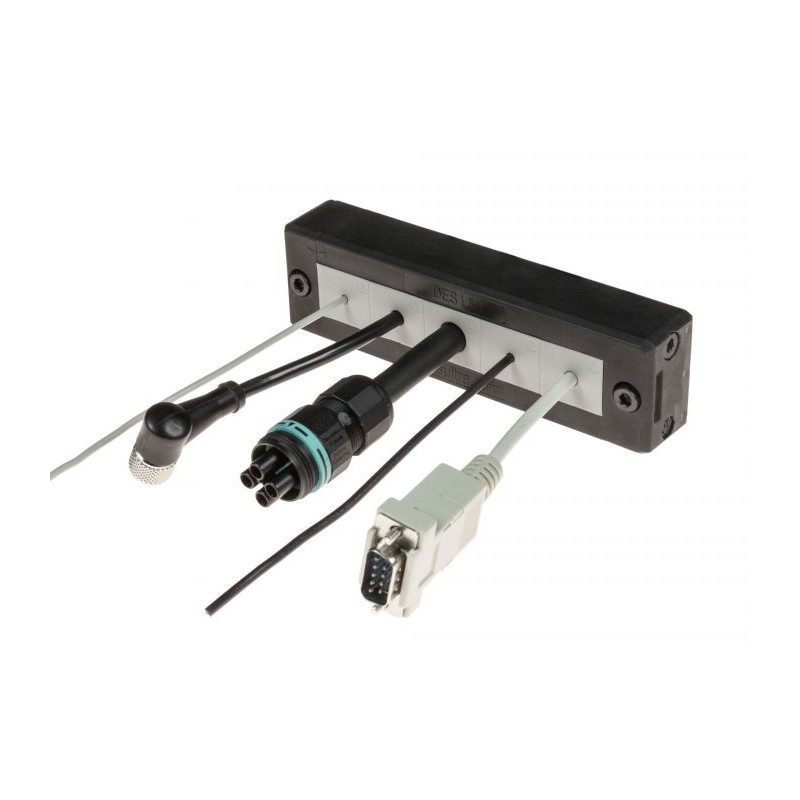

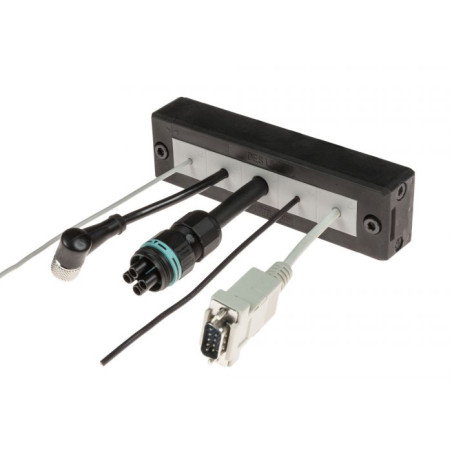

DES L5A - Marcos de entrada de cables

  • 1731310005
  • Tipo de producto Prensaestopas modulares
  • Agujero 112 x 18

The divisible DES L5 frame allows cables with and without connectors with diameters from 2 to 17 mm to be routed through cabinets and machines panels. Once closed the frame guarantees the strain relief and high IP protection.

  • For 5 small SPP inserts
  • Frame screws in AISI304 Stainless Steel
  • IP66 certified, Nema 4X* with any combination of grommets
  • Strain relief according to EN 62444
  • Robust construction IK10
  • Overmolded gasket acc.to ULV94-V0
  • ATEX version on request
  • Threaded inserts version on request

*4X for indoor use only

  • Material: PP+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm]
DES L5 1731010005 112 x 18
DES L5A 1731310005 112 x 18
