Fabricante: DetasUltra

SPC 13B - Manguitos

  • 1731052613
  • Tipo de producto Moduły uszczelniające
  • 13 ~ 14

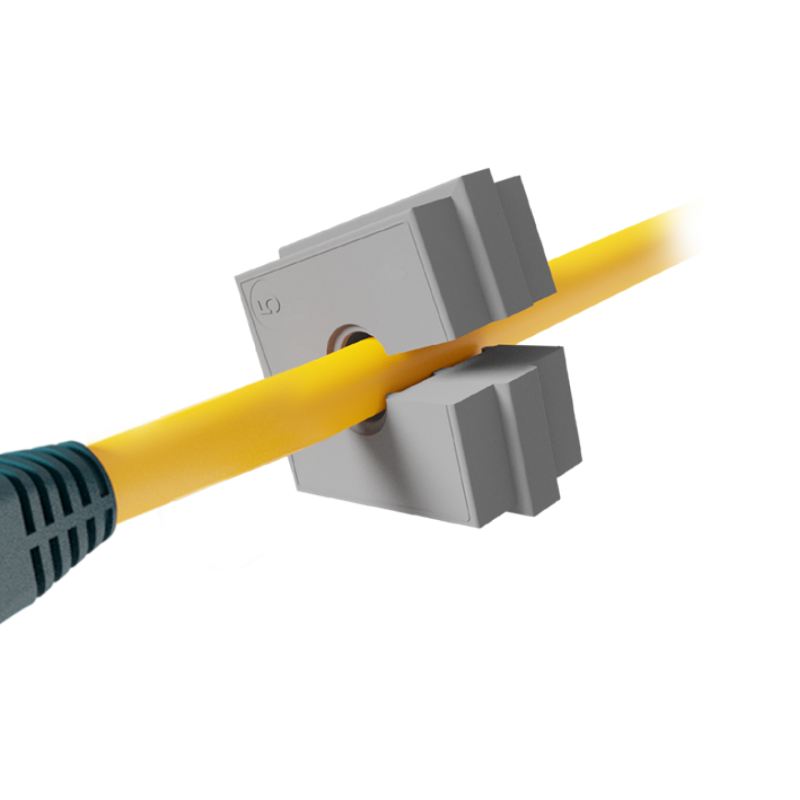

SPC series cable grommets allow a cable with diameter from 2 to 14 mm to be routed inside OSF or DES XX CLICK splittable frames.

  • Cable grommets for cables with connectors with diameters from 2 to 14 mm
  • Long lasting product and high resistance to industrial oils.
  • Colours grey and black
  • UL94-V0 for both colours
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0 (grey or black)
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Cable Ø max. [mm]
SPC 0G 1731052500 -
SPC 2G 1731052502 2 ~ 3
SPC 3G 1731052503 3 ~ 4
SPC 4G 1731052504 4 ~ 5
SPC 5G 1731052505 5 ~ 6
SPC 6G 1731052506 6 ~ 7
SPC 7G 1731052507 7 ~ 8
SPC 8G 1731052508 8 ~ 9
SPC 9G 1731052509 9 ~ 10
SPC 10G 1731052510 10 ~ 11
SPC 11G 1731052511 11 ~ 12
SPC 12G 1731052512 12 ~ 13
SPC 13G 1731052513 13 ~ 14
SPC 14G 1731052514 14 ~ 15
SPC 0B 1731052600 -
SPC 2B 1731052602 2 ~ 3
SPC 3B 1731052603 3 ~ 4
SPC 4B 1731052604 4 ~ 5
SPC 5B 1731052605 5 ~ 6
SPC 6B 1731052606 6 ~ 7
SPC 7B 1731052607 7 ~ 8
SPC 8B 1731052608 8 ~ 9
SPC 9B 1731052609 9 ~ 10
SPC 10B 1731052610 10 ~ 11
SPC 11B 1731052611 11 ~ 12
SPC 12B 1731052612 12 ~ 13
SPC 13B 1731052613 13 ~ 14
SPC 14B 1731052614 14 ~ 15
