Fabricante: DetasUltra

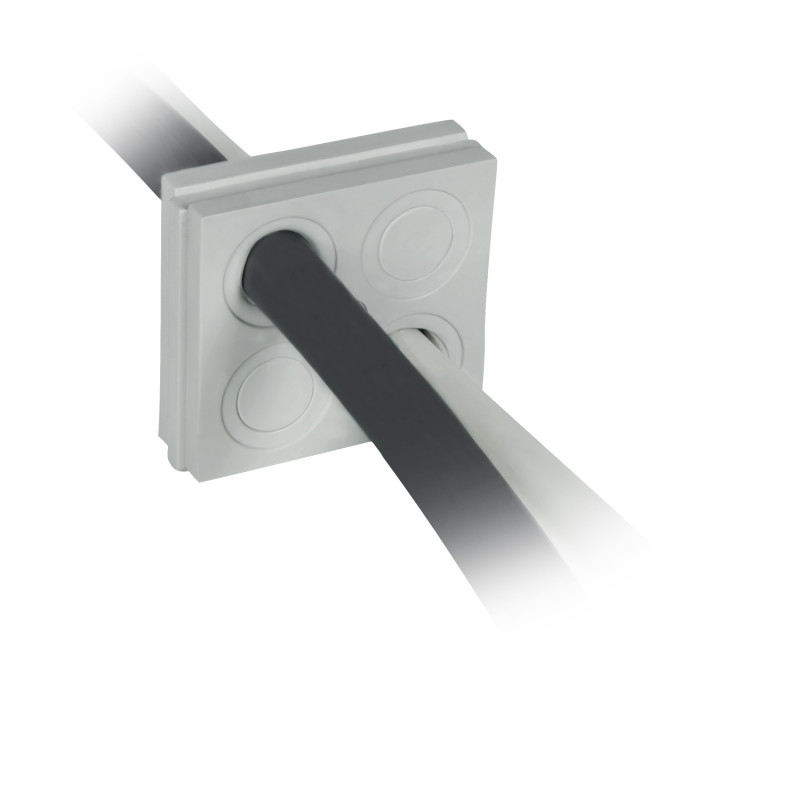

SPL M13G - Manguitos

  • 1731053058
  • Tipo de producto Moduły uszczelniające
  • 13 - 6,5 ∅

SPL M series grommets allow a large number of unterminated cables to be housed inside DES CLICK series divisible frames while taking up little space compared with the use of ordinary cable glands.

  • Multiple grommets for a large number of cables without connectors
  • Colours grey and black
  • UL94-V0 for both colours
  • Strain relief according to EN 62444
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0 (grey or black)
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code No. cables - Ø cables [mm]
SPL M4G 1731053050
4 - 16
SPL M8G 1731053055
8 - 10
SPL M13G 1731053058
13 - 6,5
SPL M4B 1731053060
4 - 16
SPL M8B 1731053065
8 - 10
SPL M13B 1731053068
13 - 6,5
