Fabricante: DetasUltra

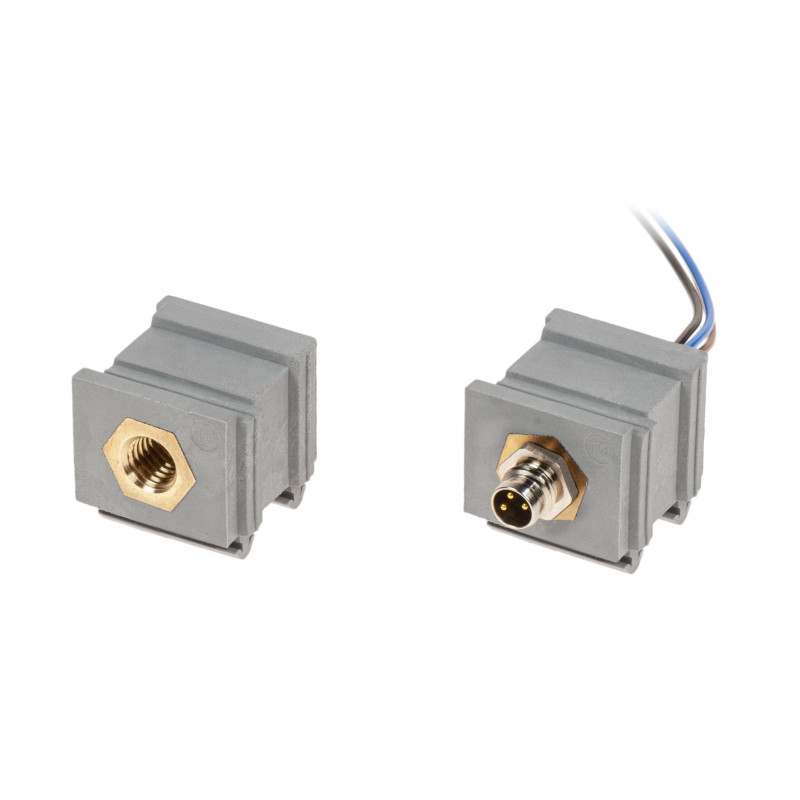

SPP F16 - Manguitos

  • 1731020716
  • Tipo de producto Módulos de sellado

The SPP F series features metric and inch threads grommets, which allows quick-connection for pneumatics or M8 M12 connectors irectly on the grommet. The plug-in system is added to the standard terminated cables or pneumatic connections

  • Small grommets with threaded inserts
  • Panel connectors not included: available on request
  • Material: TPE, brass insert
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code
SPP F8G 1731020708
SPP F12G 1731020712
SPP F16 1731020716
SPP F1/4G 1731020725
SPP F1/8G 1731020728
