Fabricante: DetasUltra

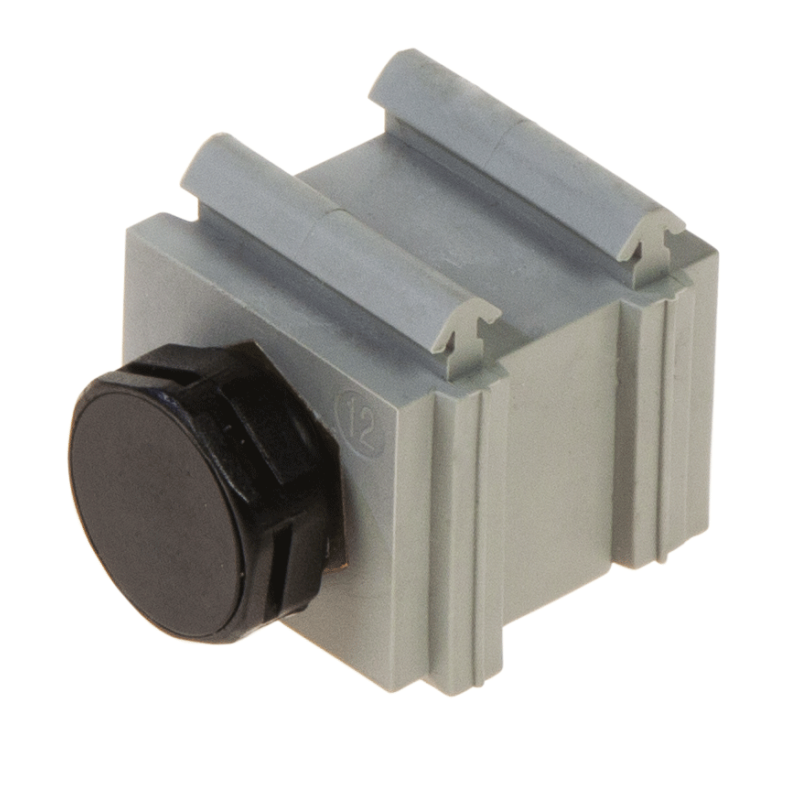

SPP VENTG - Manguitos

  • 1731020720
  • Tipo de producto Módulos de sellado

SPP VENT is a TPE grommet with pressure compensation valve, it is recommended in environments that require uniform pressures. The depressurizing grommet is inserted in the DES divisible frames and thanks to its valve, it compensates the pressure of the environments and thus avoids temperature differences and consequent condensation. The ventilation element has M12x1.5 thread and can be removed to use threaded connectors and sensors.

  • Quick assembly
  • M12 bolting
  • Material: TPE, brass insert, PP valve
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code
SPP VENTG 1731020720
