Fabricante: Panasonic

Sensores ópticos en la configuración de configuración (receptor del transmisor) M18-L

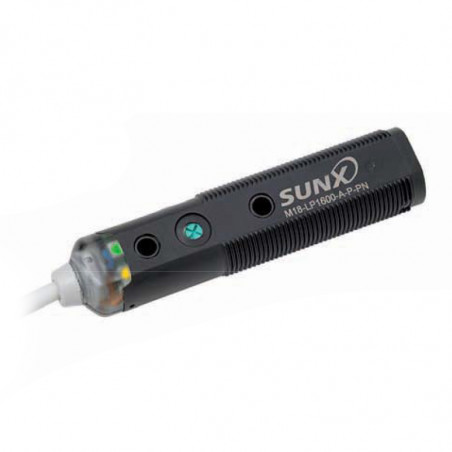

M18-L are cylindrical cased laser sensors. Available versions are: transmitter- receiver, with mirror and object reflection with option of head choosing - straight or angular. All version are available in the same plastic or metal cylindrical casing.

Description

• Laser diode with red visible light,  class 1 (650 nm)
• Wide operation range (up to 60 m)
• Two transistor outputs („light” or „dark“ mode)
• Two head types: straight or angular
• Cable or M12 connector
• Metal or plastic casing


Symbol Type Operation range Output type Power supply
M18-LT6000-A-M-PN Receiver - transmitter with metal casing and angular head. 60 m Transistor PNP 10-30 VDC
M18-LP0900-R-P-PN With mirror inside plastic casing and straight head. 9 m Transistor PNP 10-30 VDC

Connection scheme
