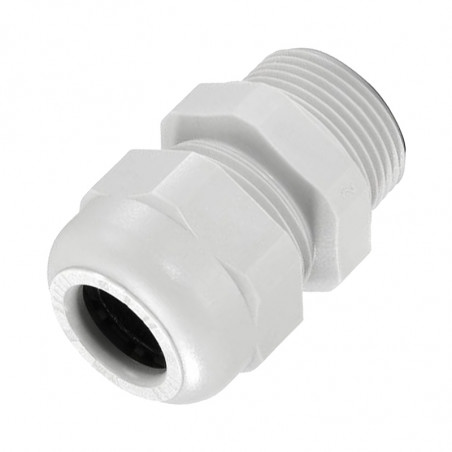

Las fotos son solo para fines informativos. Ver especificaciones de producto
please use latin characters

| Typ | Ø D (Clamping range in mm) | I | L | SW | UNIT | Mat.no |
|---|---|---|---|---|---|---|
| M12 | 3-6,5 | 8 | 16 | 15 | 100 |
570.014.M12 |
| M16 | 5-10 | 10 | 28 | 22 | 100 |
570.014.M16 |
| M20 | 6-12 | 10 | 30 | 24 | 100 |
570.014.M20 |
| M20 | 10-14 | 10 | 30 | 27 | 50 |
570.014.M21 |
| M25 | 13-18 | 10 | 37 | 33 | 50 |
570.014.M25 |
| M32 | 18-25 | 18 | 40 | 42 | 25 |
570.014.M32 |
| M40 | 22-32 | 18 | 52 | 53 | 25 |
570.014.M40 |
| M50 | 30-38 | 18 | 54 | 60 | 25 |
570.014.M50 |
| M63 | 34-44 | 18 | 57 | 65 | 10 |
570.014.M63 |
| Typ | Ø D (Clamping range in mm) | I | L | SW | UNIT | Mat.no |
|---|---|---|---|---|---|---|
| PG7 | 3-6,5 | 8 | 22,5 | 15 | 100 |
570.014.007 |
| PG9 | 4-8 | 8 | 26 | 19 | 100 |
570.014.009 |
| PG11 | 5-10 | 8 | 29 | 22 | 100 |
570.014.011 |
| PG13,5 | 6-12 | 9 | 30 | 24 | 100 |
570.014.013 |
| PG16 | 10-14 | 10 | 32,5 | 27 | 50 |
570.014.016 |
| PG21 | 13-18 | 11 | 37 | 33 | 50 |
570.014.021 |
| PG29 | 18-25 | 11 | 42 | 42 | 25 |
570.014.029 |
| PG36 | 22-32 | 13 | 52 | 53 | 25 |
570.014.036 |
¿Estás interesado en este producto? ¿Necesita información adicional o precios individuales?
Usted debe estar conectado

| Typ | Ø D (Clamping range in mm) | I | L | SW | UNIT | Mat.no |
|---|---|---|---|---|---|---|
| M12 | 3-6,5 | 8 | 16 | 15 | 100 |
570.014.M12 |
| M16 | 5-10 | 10 | 28 | 22 | 100 |
570.014.M16 |
| M20 | 6-12 | 10 | 30 | 24 | 100 |
570.014.M20 |
| M20 | 10-14 | 10 | 30 | 27 | 50 |
570.014.M21 |
| M25 | 13-18 | 10 | 37 | 33 | 50 |
570.014.M25 |
| M32 | 18-25 | 18 | 40 | 42 | 25 |
570.014.M32 |
| M40 | 22-32 | 18 | 52 | 53 | 25 |
570.014.M40 |
| M50 | 30-38 | 18 | 54 | 60 | 25 |
570.014.M50 |
| M63 | 34-44 | 18 | 57 | 65 | 10 |
570.014.M63 |
| Typ | Ø D (Clamping range in mm) | I | L | SW | UNIT | Mat.no |
|---|---|---|---|---|---|---|
| PG7 | 3-6,5 | 8 | 22,5 | 15 | 100 |
570.014.007 |
| PG9 | 4-8 | 8 | 26 | 19 | 100 |
570.014.009 |
| PG11 | 5-10 | 8 | 29 | 22 | 100 |
570.014.011 |
| PG13,5 | 6-12 | 9 | 30 | 24 | 100 |
570.014.013 |
| PG16 | 10-14 | 10 | 32,5 | 27 | 50 |
570.014.016 |
| PG21 | 13-18 | 11 | 37 | 33 | 50 |
570.014.021 |
| PG29 | 18-25 | 11 | 42 | 42 | 25 |
570.014.029 |
| PG36 | 22-32 | 13 | 52 | 53 | 25 |
570.014.036 |
