Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: SALTEK

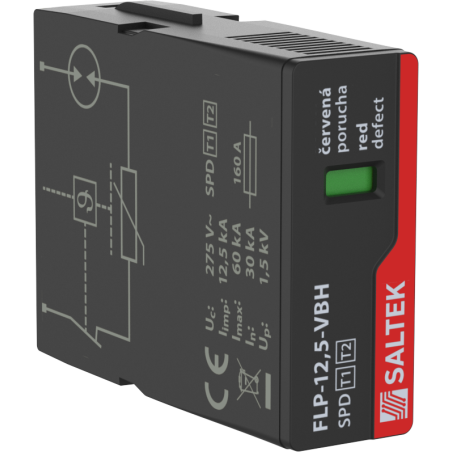

FLP-12,5-VBH/0 - Protector contra sobretensiones (SPD)

  • FLP-12,5-VBH/0
  • Tipo de SPD T1,T2
  • Corriente total de descarga (10/350 µs) 12.50 kA
  • Tensión máxima de funcionamiento 275.00 V AC
Parameter name Parameter value
Type of SPD T1,T2
Maximum operating voltage Uc 275.00 V AC
Short-circuit current rating ISCCR 50.0 kA
Lightning impulse current (10/350 µs) Iimp 12.50 kA
Nominal discharge current (8/20 µs) In 30.00 kA
Maximum discharge current (8/20 µs) Imax 60.00 kA
Voltage protection level Up 1.50 kV
Response time ta 100 ns
Fault indication red indication field
Customs tariff number 85363030
EAN 8595090570509

Envíe una consulta

¿Estás interesado en este producto? ¿Necesita información adicional o precios individuales?

Contacta con nosotras
SOLICITA EL PRODUCTO close
Gracias por enviar tu mensaje. Responderemos lo antes posible.
SOLICITA EL PRODUCTO close
Vistazo

Añadir a la lista de deseos

Usted debe estar conectado

  • Tipo de SPD T1,T2
  • Corriente total de descarga (10/350 µs) 12.50 kA
  • Tensión máxima de funcionamiento 275.00 V AC
Parameter name Parameter value
Type of SPD T1,T2
Maximum operating voltage Uc 275.00 V AC
Short-circuit current rating ISCCR 50.0 kA
Lightning impulse current (10/350 µs) Iimp 12.50 kA
Nominal discharge current (8/20 µs) In 30.00 kA
Maximum discharge current (8/20 µs) Imax 60.00 kA
Voltage protection level Up 1.50 kV
Response time ta 100 ns
Fault indication red indication field
Customs tariff number 85363030
EAN 8595090570509
