Fabricante: SALTEK

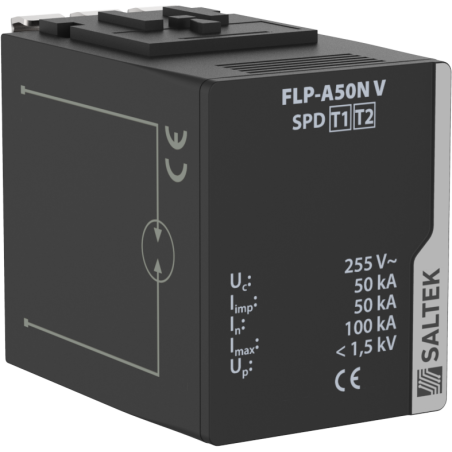

FLP-A50N V/0 - Protector contra sobretensiones (SPD)

  • FLP-A50N V/0
  • Tipo de SPD T1
  • Corriente total de descarga (10/350 µs) 50.00 kA
  • Tensión máxima de funcionamiento 255.00 V AC
Parameter name Parameter value
Type of SPD T1
Maximum operating voltage Uc 255.00 V AC
Lightning impulse current (10/350 µs) Iimp 50.00 kA
Nominal discharge current (8/20 µs) In 50.00 kA
Maximum discharge current (8/20 µs) Imax 100.00 kA
Voltage protection level Up 1.50 kV
Ability to independently switch off the following current Ifi 0.1 kA
Response time ta 100 ns
ETIM Class EC000941
Customs tariff number 85363090
EAN 8595090535379
