Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: SALTEK

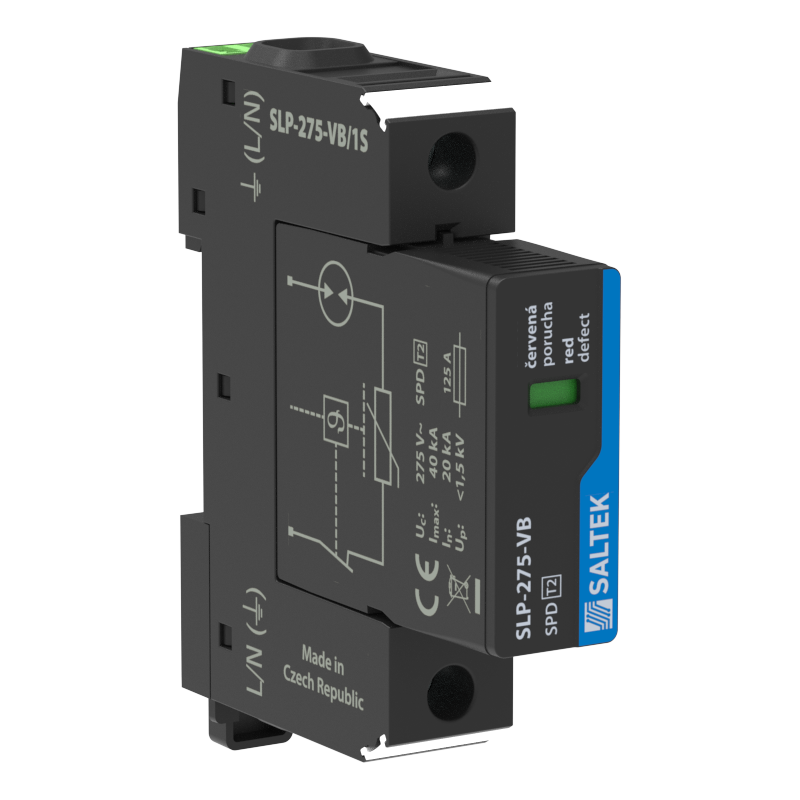

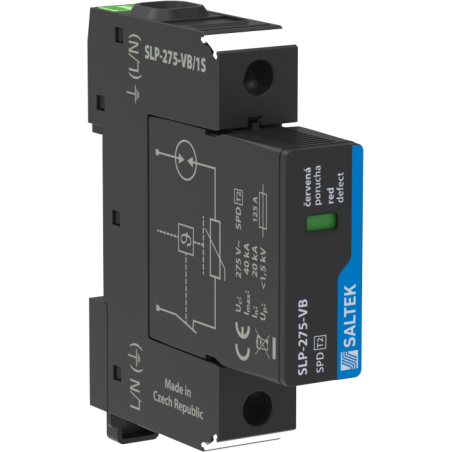

SLP-275-VB/1S - Protector contra sobretensiones (SPD)

  • SLP-275-VB/1S
  • Voltaje nominal 230 V AC
  • Grado de protección IP 20
  • Tipo de SPD T2
  • Tipo de red TT
  • Indicación remota potential-free change-over contact
  • Tensión máxima de funcionamiento 275.00 V AC
Parameter name Parameter value
Type of SPD T2
Mounting DIN rail 35 mm
Nominal voltage Un 230 V AC
Maximum operating voltage Uc 275.00 V AC
Maximum operating voltage Uc 220.00 V DC
Type of network TT|TN
Maximum overcurrent protection 125 A gL/gG
Short-circuit current rating ISCCR 50.0 kA
Residual current IPE 0.002 mA
Nominal discharge current (8/20 µs) In 20.00 kA
Maximum discharge current (8/20 µs) Imax 40.00 kA
Voltage protection level Up 1.50 kV
Response time ta 100 ns
TOV 5 s L-N 335 V
TOV characteristic (TOV 5 s) withstand
TOV 120 min L-N 440 V
TOV characteristic (120 min) withstand
Cross-section of connected conductors solid (min) 1.00 mm2
Cross-section of connected conductors solid (max) 35.00 mm2
Cross-section of connected conductors stranded (min) 1.00 mm2
Cross-section of connected conductors stranded (max) 25.00 mm2
Cross-section of remote indication conductors solid (max) 1.5 mm2
Cross-section of remote indication conductors stranded (max) 1.5 mm2
Fault indication red indication field
Remote indication potential-free change-over contact
Remote indication contacts 250V/0,5A AC,250V/0,1A DC
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
Humidity 5 - 95 %
According to standard EN 61643-11:2012, IEC 61643-11:2011
ETIM Class EC000941
Plug module SLP-275-VB/0
Customs tariff number 85363030
EAN 8595090570561
