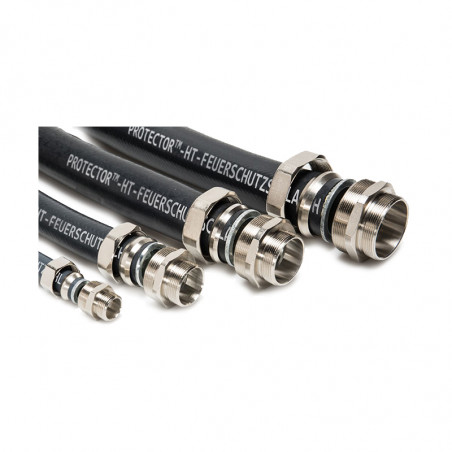

Protector ™ HT-Fire Protection-Mangering

Properties

• High temperature resistance:
    Silicone cover:
     >+300°C, short term up to +500°C
    Inner sleeve:
    >+800°C, maximum temperature (short term) +1100°C
• Fire-retardant and self-extinguishing
• Dielectric strength of > 12 kV
• Free of halogens
• REACH-compliant
• Type approval from Germanic Lloyd
• Approved for rail use according to EN 45545-2:2016-02-R22/R23-HL
• 100% made in Germany

Material

• Inner sleeve: tight braided, made of high temperature resistant HT-yarns
• Cover: smooth extruded silicone, fire-retardent and self-extinguishing, resistant of abrasion and good chemical resistance

Areas of Application

• Reliable protection against open fire, hot slag, flying sparks and liquid metal splashes up to +1500°C for cables, lines and hoses
• Improvement of staff safety by contact protection against burns on hot hoses or fittings
• Diverse applications in the steel, electrical and chemical industries
• Protection of brake hoses, hydraulic- and pneumatic lines as well as other hoses and cables of rail vehicles (see railway approval EN 45545-2: 2016-02-R22 / R23-HL3)
