Fabricante: Partex Marking Systems

PTC - Hoy en cables

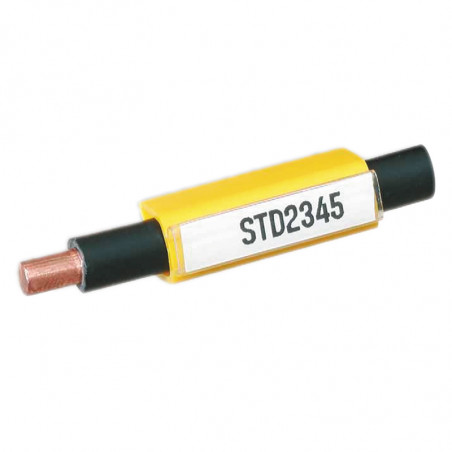

- Open profile tags with pocket for a label
- Allows to quickly mark cables which are already connected.
- Fast label assembly
- Strongly fits to the cable because of strong snap fasteners.
- Good for UTP computer cables.
- Labels can be quickly overprinted with:
- needle, ink or laser printer.
- thermotransfer printer MK3 or plotter MK1 (in case of PFC cards),
- printer MK8-STD, MK8-PRO or MK9-ProMark (for PP profile).
Properties
Operation temperature:  -30°C - +60°C
Material:  pcv non burning, self extinguishing
  according to  ul94-vo


Dimensions

Type
  [mm]		 height h
[mm]		 Width b
[mm]		 Text height [mm]
PTC-10 5.4 3.7 4.6
PTC-20 6.5 4.5 4.6
PTC-30 7.8 5.7 4.6
PTC-40 9.3 6.9 4.6
PTC-50 10.8 8.2 4.6


Dimensions and packing
Type For cables Length Label Package
PTC-10 -2.4  -  3.0 mm -0.4  -   1.5 mm2 15 mm
21 mm
30 mm		 PF-10, PFC042
or PP-046		 package 200 pce
PTC-20 -3.0  - 4.0 mm -1.5  -  3.0 mm2 15 mm
21 mm
30 mm		 PF-10, PFC042
or PP-046		 package 200 pce
PTC-30 -4.0  -  5.0 mm -3.0  -  4.0 mm2 15 mm
21 mm
30 mm		 PF-10, PFC042
or PP-046		 package 200 pce
PTC-40 -5.0  - 6.2 mm -4.0  -  5.0 mm2 15 mm
21 mm
30 mm		 PF-10, PFC042
or PP-046		 package 100 pce
PTC-50 -6.0  -  7.2 mm -5.0  -  6.0 mm2 15 mm
21 mm
30 mm		 PF-10, PFC042
or PP-046		 package 100 pce

Application
