Fabricante: Flexelec

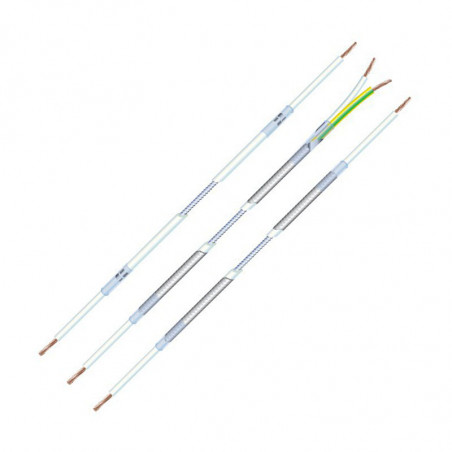

Cables aislados CP - CP / T - CP / TW - CP / I - CP / IW

Aplications

CP, CP/T, CP/TW, CP/I and CP/IW heating cables are mainly used in the household electrical and refrigeration industries and for equipment where protection against freezing or temperature maintenance is necessary. To ensure that these heating elements enjoy a long service life, we recommend using a control device.


Characterictics
  • Power cable: standard length: 1 m.
  • CP: PVC insulated heating element.
  • CP/T: PVC insulated heating element with tinned copper braid and earthing conductor.
  • CP/TW: PVC insulated heating element with tinned copper braid, no earthing conductor.
  • CP/I: PVC insulated heating element with stainless steel braid and earthing conductor.
  • CP/IW: PVC insulated heating element with stainless steel braid, no earthing conductor.


  CP CP/T   CP/TW
CP/I   CP/IW
Heating wire nickel-copper or nickel-chrome
Insultaion PVC 105°C
Diameter 2.3 to 3.5 mm 3 mm to 4 mm
Max. power 15 W/m
Voltage Any voltage on requestup to 500 V
Permissible surface temperature from - 30°C to + 105°C
Tolerances Resistance ± 10 %
Diameter + 0.2 /- 0.1 mm
Length: ± 1 %
Connection insulation Heat-shrink sheath with adhesive
