Fabricante: DACPOL

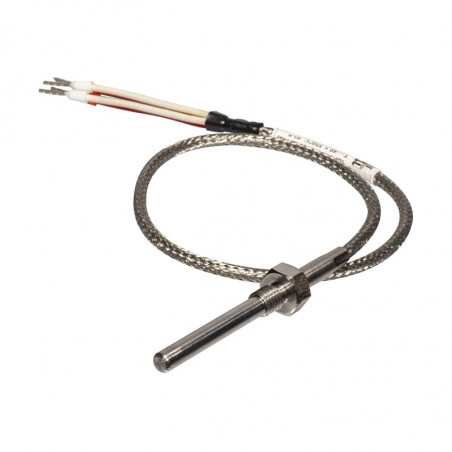

Sensor resistivo con conector ACT-21 y alambre

Resistant sensor with stub pipe and cable is used for temperature measurement in devices and aggregates.  Threaded stub pipe allows for easy and reliable sensor assembly to the measurement socket. Sensor has wide range of usage in aggressive media. Cable is resistant for high temperature up to +400°C.

SPECIFICATION:
Type Execution
ACT-21 normal
ACT-21/EXI Spark safe

SENSOR TECHNICAL PARAMETERS
Measurement resistor Version Characteristic Measurement range Accuracy class Max measurement current Connection type
1xPt100
2xPt100
normal shockproof according to PN-EN-60751 from -50°C
up to +250°C
B 8 mA 2 cables
A 5 mA 3, 4
cables
-50°C+150°C 1/3 B DIN 2 mA


Shield
diameter
d[mm]

material according to

length
L[mm]

Ø3, Ø4, Ø5 , Ø6, Ø8, Ø9, Ø10 1.4571 arbitrary
  Connection stub pipe
stub pipe D
M12x1, M12x1.5, M14x1.5, M20x1.5
G1/4”, G3/8”, G 1/2’’

Connection cable
Type Diameter Type Composition Maks. temp. pracy Długość LK
2 przewody Ø2,9 L2GGD-2x0,22mm2 fibre glass +400°C arbitrary
3, 4 przewody Ø3,1 L4GGD-4x0,22mm2 fibre glass +400°C
2 przewody Ø4,2 L4TS-2x0,34mm2 teflon, silicon +180°C
3, 4 przewody Ø4,3 L4TS-4x0,22mm2 teflon, silicon +180°C
3, 4 przewody Ø2,9 L4TT-4x0,22mm2 teflon, teflon +260°C
3 przewody Ø3,8 L6TT-6x0,22mm2 teflon, teflon +260°C
2 przewody Ø4,3 L2SDS-2x0,25mm2 silicon, +180°C
3, 4 przewody Ø4,4 L4TDS-4x0,25mm2 teflon, silicon +180°C
3, 4 przewody Ø4 L4TFDT-4x0,22mm2 teflon, foil, +260°C




Marking:
A. Execution
A

Normal
-
  Spark safe /Exi
B. Resistor type
B

Single Pt100
1xPt100

Double Pt100
2xPt100
C. Accuracy class
C

B
B

A
A

1/3 B DIN
1/3 B DIN
D. Shield diameter d
D

Ø4
4

Ø5
5

Ø6
6

Ø8
8

Ø9
9

Ø10
10
E. Stub pipe thread D
E

M12x1
M12x1

M12x1,5
M12x1,5

M14x1,5
M14x1,5

M20x1,5
M20x1,5

G 1/4''
G 1/4

G 3/8''
G 3/8

G 1/2''
G 1/2
F. Shield material
F

1.4571
1.4571
G. Shield length
G

L
give in mm
H. Connection and cable type
H

2 cables (L2GGD)
2p-L2GGD

3 cables (L4GGD)
3p-L4GGD

4 cables (L4GGD)
4p-L4GGD

2 cables (L2TS)
2p-L2TS

3 cables (L4TS)
3p-L4TS

4 cables (L4TS)
4p-L4TS

3 cables (L4TT)
3p-L4TT

4 cables (L4TT)
4p-L4TT

3 cables (L6TT)
3p-L6TT

2 cables (L2SDS)
2p-L2SDS

3 cables (L4TDS)
3p-L4TDS

4 cables (L4TDS)
4p-L4TDS

3 cables (L4TFDT)
3p-L4TFDT

4 cables (L4TFDT)
4p-L4TFDT
I. Cable length
I

LK
give in mm
J.Sensor type
K

normal
Z

shockproof
W
