Fabricante: M-SYSTEM

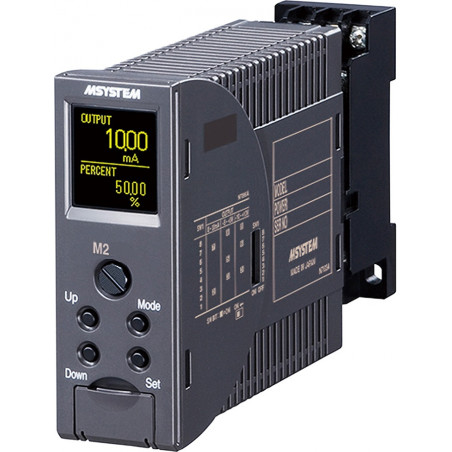

M2EXR - Convertidor de temperatura con entrada RTD - Personalizable

  • M2EXR

M2EXR is a temperature converter with RTD input. It has an OEL display. Ranges of inputs and outputs calibrated with.


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring < / li>
  • Programmable via PC
  • OEL display on the front of the housing
  • Power supply 24V or 110V DC, 100-240V AC
  • LED power indicator < / li>
  • DIN rail mounting
  • 2000V AC insulation

Input types: RTD - JPt 100 (JIS'89), Pt 100 ( JIS'89), Pt 100 (JIS'97, IEC), Pt 50Ω (JIS'81), Ni 508.4Ω, Pt 1000, Ni 100, Cu 10 @ 25 ° C
Types of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC: 2000V AC
AC: 1500V AC
Ranges selection Configurable via PC
Double Output None
Power AC / DC
Operating Temperature - 5 to + 55 ° C
Mounting DIN rail
Dimensions 29.5x83x124mm
