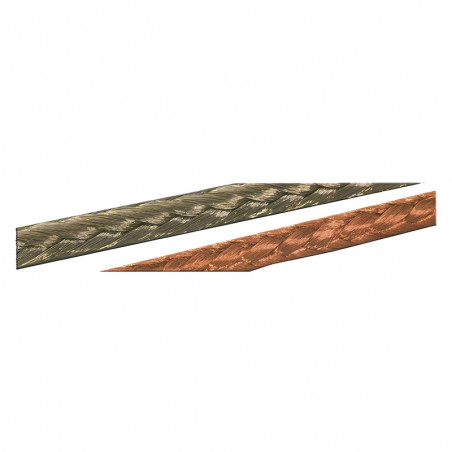

Trenzado redondo
  • Trenzado redondo

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Trenzado redondo

Normal or tinned copper wires according to:NFC 31111

Wattles are elastic, so dimensions given in the table are approximated.
Section
[mm2]
Reference number for standard wattle Reference number for tinned wattle Single cord diameter
[mm]
Nominal size
[mm]
1

10084

10123

0,15 1,5
2

10087

10126

0,15 2
3

10089

10128

0,15 3
4

10090

10129

0,15 3
5

10091

10130

0,15 4
6

10092

10131

0,15 4
8

10093

10132

0,15 4,5
10

10094

10133

0,15 5
12

10095

10134

0,15 5,2
16

10097

10136

0,15 6
20

10098

10137

0,15 7
25

10099

10138

0,15 8
30

11535

13460

0,2 9
35

11635

11637

0,2 9,5
40

13461

13462

0,2 10
50

11530

13463

0,2 11
70

12763

13464

0,2 12,5
75

11272

13465

0,2 13
95

11067

13466

0,2 14,5
100

11274

10784

0,2 15
120

11579

13467

0,2 18
150

10454

12088

0,2 20
200

13468

13469

0,2 23
250

11099

13470

0,2 25
