Fabricante: FLEXTEC

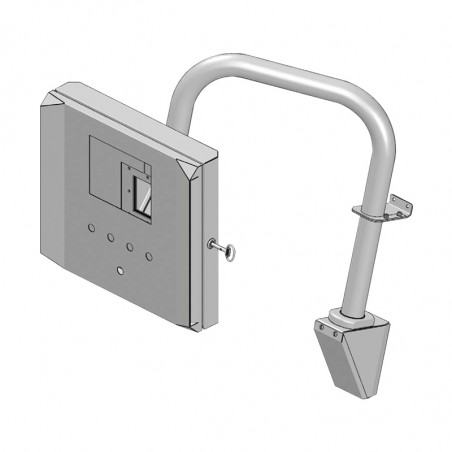

Sidecomom - Sistema de suspensión de acero inoxidable.

Application
Range of tubular fixtures of variable size.

Costruction
Tubular arms in stainless steel available in 48.5mm and 60.5 mm
diameter, thickness of 3.0mm, curvature radius 180°.
Available in 4 different formats:
L-shaped, code FML
J-shaped, code FMJ
S-shaped, code FMS
straight, code FMI
custom length.

Optionals
Product can be customized to client's specifics needs:
holes, cutouts and different sizes as per your drawings
with AISI 316 and specialty stainless steels.
Micropeened finish.

Accessories
Joint
Flange
Wall-mounting brackets for joints


Graphical representation of the decrease in the tube according to the weight applied and its overhang.



Dimension

sideCOM - system zawieszeń ze stali nierdzewnej wymiary


Product code * Dimensions
A mm B mm C mm

FMJ

 min 450 min 245 min 300

FML

 min 245 min 245 //

FMS

 min 250 min 245 min 245

FMI

 // min 300 //
* minimum requested size

Adjustable joints, flanges

sideCOM - system zawieszeń ze stali nierdzewnej akcesoria
Product code Description Q.ty

SND 48

 Adjustable Joint 360° Ø 48,3 mm 1

SND 60

 Adjustable Joint 360° Ø 60,3 mm 1

SNF 48

 Joint Ø 48,3 mm 1

SNF 60

 Joint Ø 60,3 mm 1

SNF 48 01

 Wall-mounting bracket Ø 48,3 mm 1

SNF 60 01

 Wall-mounting bracket Ø 60,3 mm 1

SNF 48 02

 Arm fixing flange Ø 48,3 mm 1

SNF 60 02

 Arm fixing flange Ø 60,3 mm 1
