Fabricante: SALTEK

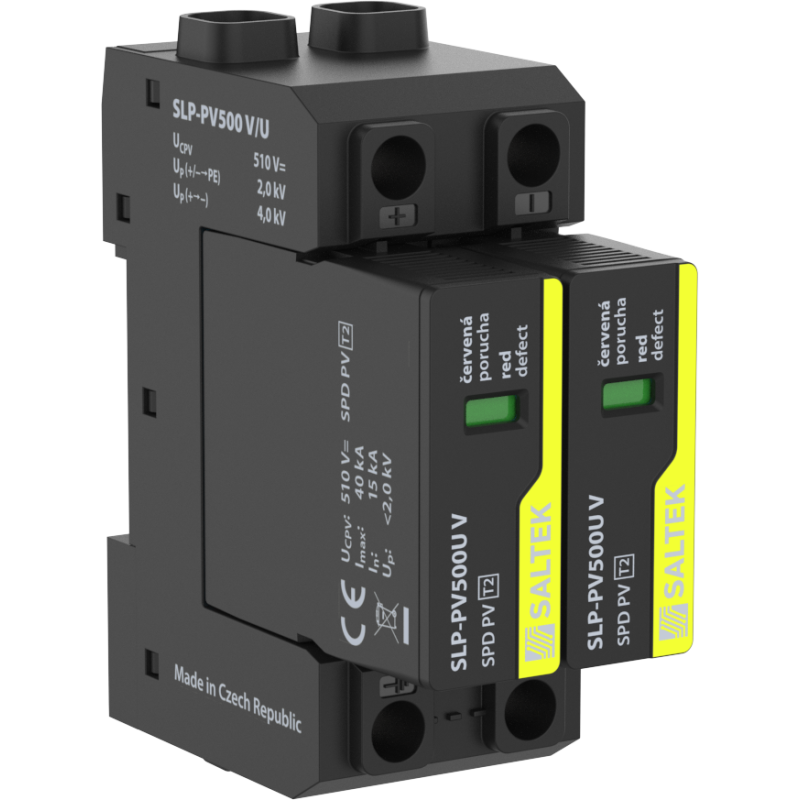

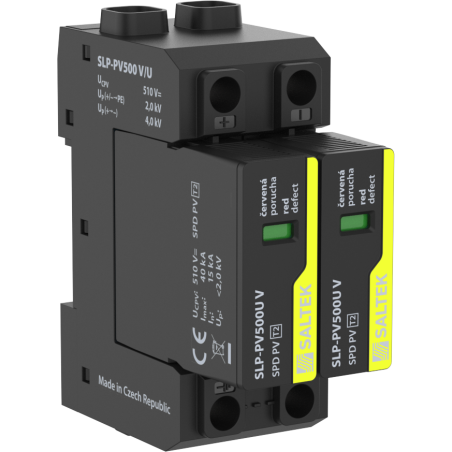

SLP-PV500 V/U - Protector contra sobretensiones (SPD)

  • SLP-PV500 V/U
  • Grado de protección IP 20
  • Tipo de SPD PV T2
Parameter name Parameter value
Type of SPD PV T2
Mounting DIN rail 35 mm
Maximum operating voltage mode +/PE, -/PE UCPV 510.00 V DC
Short-circuit current rating ISCPV 10 000 A DC
Residual current mode +/PE, -/PE IPE 0.190 mA AC
Residual current mode +/PE, -/PE IPE 0.005 mA DC
Total discharge current (8/20 µs) ITotal(8/20) 80.00 kA
Nominal discharge current (8/20 µs) In 15.00 kA
Maximum discharge current (8/20 µs) Imax 40.00 kA
Voltage protection level mode +/- Up 4.00 kV
Voltage protection level mode +/PE, -/PE Up 2.00 kV
Response time ta 25 ns
Cross-section of connected conductors solid (min) 1.00 mm2
Cross-section of connected conductors solid (max) 35.00 mm2
Cross-section of connected conductors stranded (min) 1.00 mm2
Cross-section of connected conductors stranded (max) 25.00 mm2
Fault indication red indication field
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
According to standard EN 61643-31, IEC 61643-31
ETIM Class EC000941
Plug module SLP-PV500U V/0
Customs tariff number 85363030
EAN 8595090536642
